Pipe Crawler S300

Pipe Crawler S300 is a versatile and dependable drain camera system. With its waterproof pan-and-tilt camera with both front and top connectors, it can be configured for use with pipe diameters from 150mm/6" to 1000mm/40". The high-quality control systems for the camera, 4-wheel driver crawler, and DVR operation are contained in a durable case. Wheel sets and spacers, plus the optional pneumatic wheels, allow for a variety of configurations for different pipe inspections.

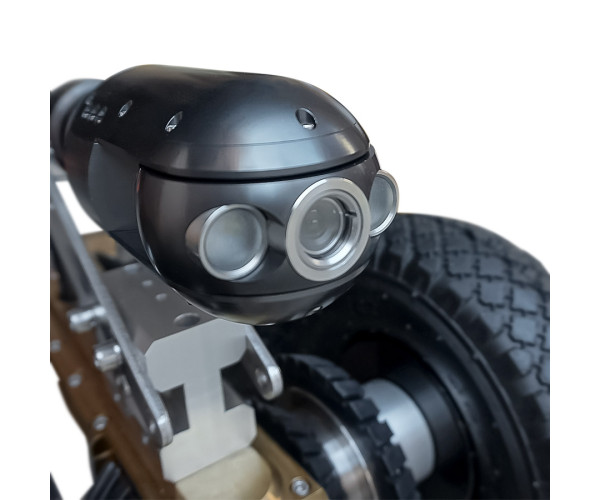

Camera

• 5.5 Bar waterproof pan-and-tilt capable
• Body: Stainless Steel 303 grade, Aluminium HE30 anodized, waterproof rear connector
• Imaging: High quality, sensitive CMOS system on chip, 720 x 576 active pixels, >420 TV lines, PAL TV system
• Lights: Superbright LED 600mA, 1100 lumens
• Dimensions: D75mm x L180mm, Weight: 1.2kg

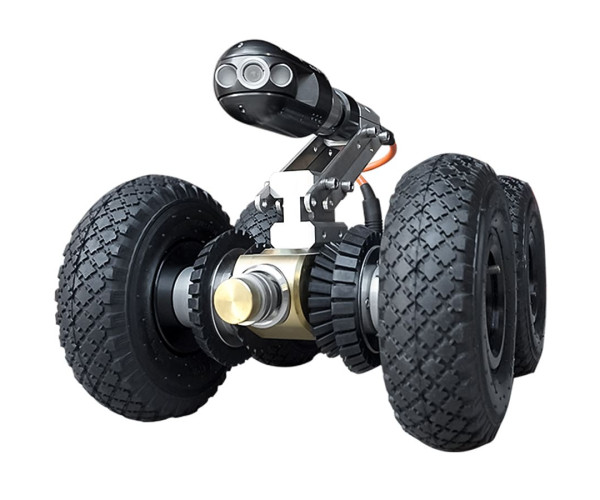

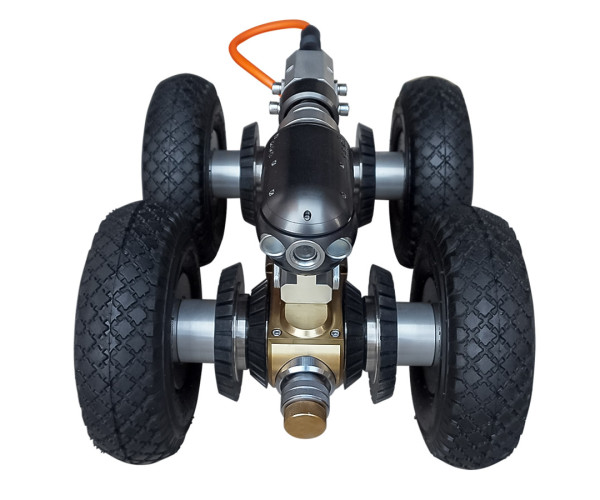

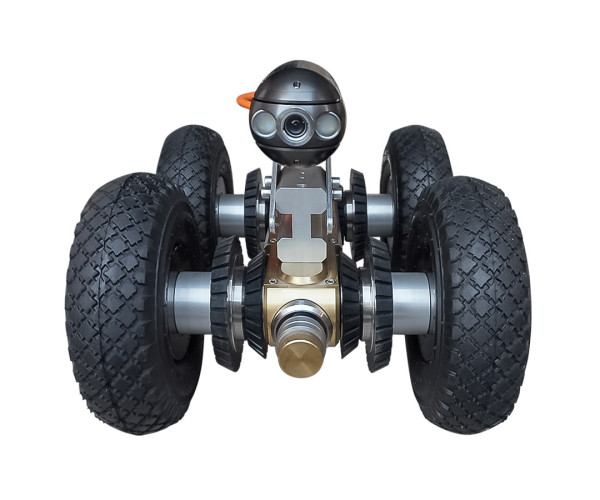

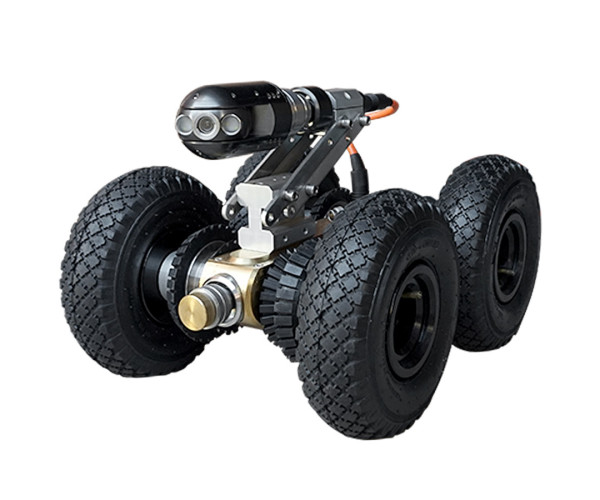

Crawler

• Construction: Brass CZ121 grade body. Cable, camera fittings, and housing: Stainless Steel 303
• Motor: 48 Volt DC Motor, planetary gearbox, 15Nm output torque
• Drive: 4WD chain transmission to quad sealed rear axle
• Dimensions: L445mm x W(6” Config)108mm
• Electrical: 19 Pin Amphenol-type connector (front and rear), Fischer Environmental Connectors (top mounting)
• Accessories: Adjustable gantry to enable top mounting camera for large diameter surveys
• Wheel sets and gantry: 137mm diameter for pipe 225mm+, 206mm diameter for 300mm+; Optional pneumatic wheel set: 800mm and 1m diameter
• Wheel Spacer: 60mm long
• Inclinometer: Module sends data to OSD for display of pipe gradient (optional)

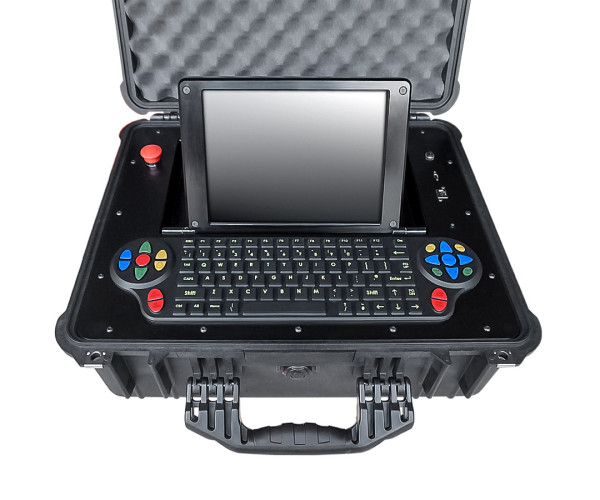

Control Unit Specifications

• PELI type case, 13 kg
• 10.4" LED Backlit Display with 800x600 Resolution TFT monitor
• Minimum 500Gb Hard Drive
• Compatible with WinCan reporting Software (PC)
• 6-page text OSD displays general/counter/inclinometer information in a flip-up housing with optically clear acrylic window
• Controls: Custom-designed panel with 78-key keyboard, silicon rubber design with epoxy-coated colored control pads for camera, crawler, and DVR operation. Digital step speed and light power
• DVR: Integrated DVR records video as MPEG2 codec or saves to USB interface
• Electrical: Automatic sensing 110v or 240v mains or 1KVA generator power inlet

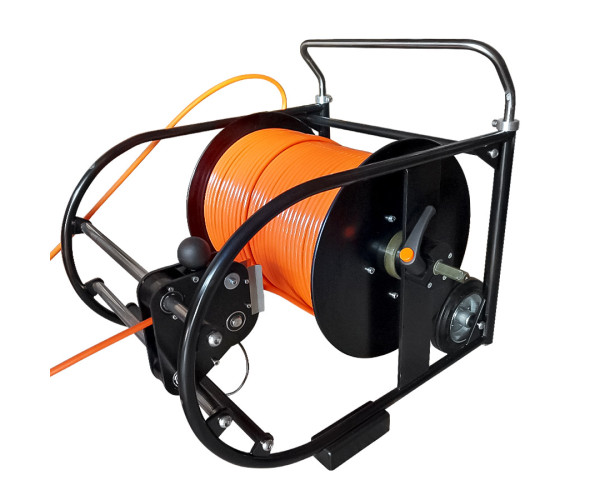

Cable and Drum Specifications

• Construction: Multicore, Kevlar-reinforced braided Hytrel cable with 75-ohm coax. Polyurethane 4350 flame retardant, halogen-free jacket. Stainless steel wet cable end with internal strain relief
• Connector: 19 Pin Amphenol type with O-ring sealing, stainless steel locking ring
• Diameter: 9.6mm
• Length: 200m, 250m (optional)
• Minimum Bend Radius: 150mm
• Cable Drum Construction: Mild Steel powder-coated tubular construction, aluminium bobbin and counter mechanics, cast iron winding handle, stainless steel adjustable transport handle
• Encoder: For distance measurement display

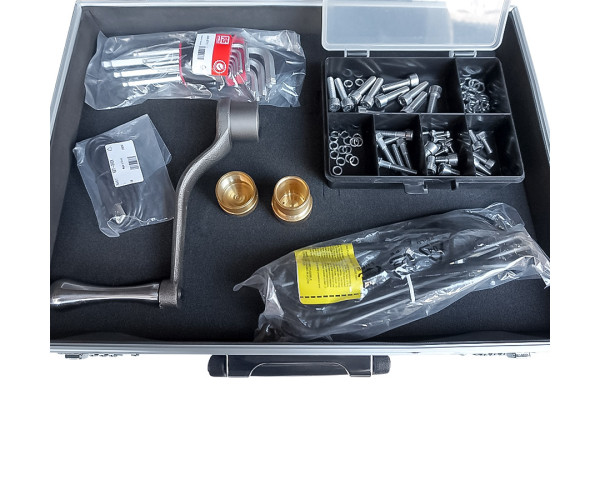

What's in the box:

1. Monitor/Control box
2. Pan-and-Tilt camera
3. Crawler (tractor)
4. Cable on the reel
5. Meter counter
6. Power Cable
7. Winding handle
8. Wheel sets
9. Hex key
10. Set of screws
11. Additional gaskets
12. Keyboard (integrated)
