Pipe Crawler C100

C100 Pipe Crawler is engineered for small pipe diameters, starting from 4"/100 mm up to 24"/600 mm. Its compact size allows inspection of a wide range of pipe, sewer, ductwork, and industrial sites. This set includes a control box which has Windows-based software, a keyboard, a mouse, and a manipulator. The manipulator controls the pan-and-tilt camera and crawler car. The cable reel has a winch with an automatically rolling in-and-out function. This unit could be optionally equipped with a battery.

2"/50 mm PT Camera

• Camera sensor: 1/3” pixel, CMOS
• Illumination: 0.01 LUX
• Camera resolution: 700TVL (PAL: 976 * 592; NTSC: 960 * 592)
• Focus: motorized
• Light source: 20 superbright LEDs
• Camera rotation: Pan 360°, Tilt 180°
• Material: aluminum
• Working temperature: -20℃ ~ +55℃
• Diameter: 2"/50mm
• Weight: 2.6 lbs / 1.2 kg
• Waterproof level: IP68
• Pressure: 8-18 psi

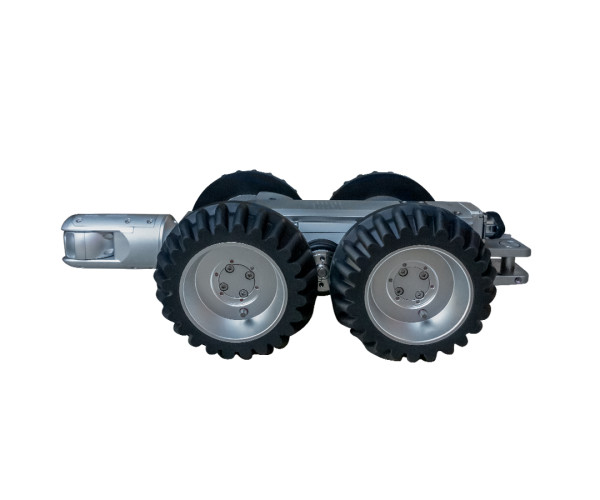

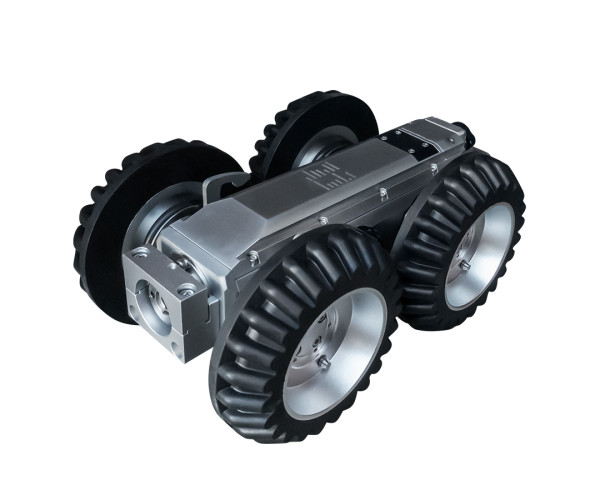

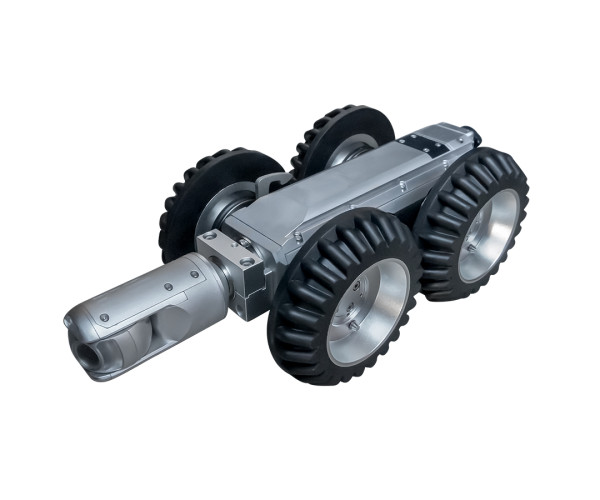

Tractor/Car

• For 4”/100 mm - 24"/600 mm diameter pipes with 3 sets of tires
• Wireless control unit
• Two kinds of power supply: adapter, battery (optional)
• Move forward/backward, turn left/right
• Anti-rollover design
• Climbing ability: ≤30°
• Injected with 12 PSI pure gas, workable underwater 10 meters, IP68 waterproof level
• Working temperature: -20℃ ~ +55℃

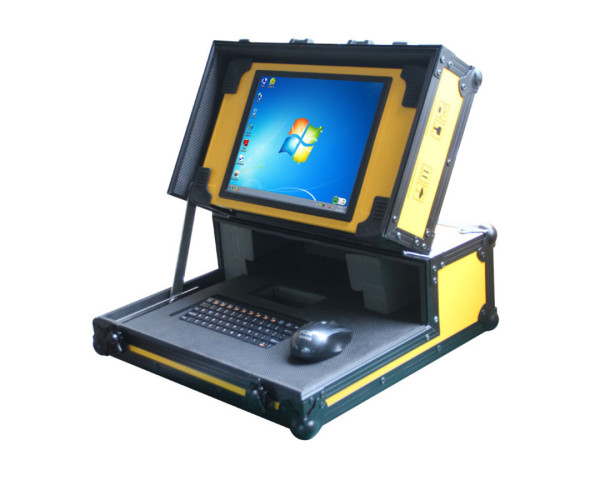

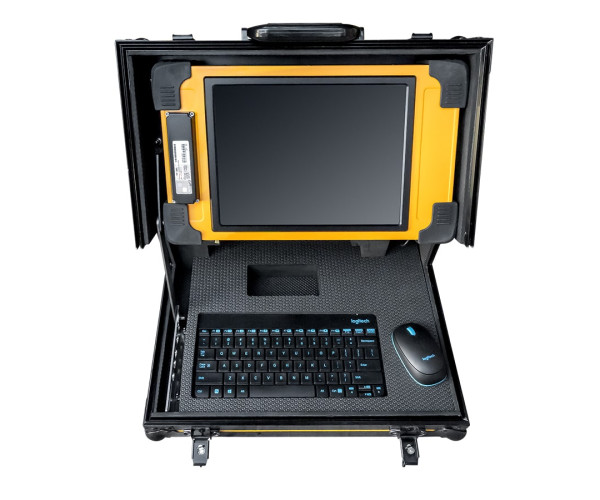

12.1’’ Inch Monitor Controller

• Screen: touch screen, Windows-based operating system
• Display: 12.1 inch
• Storage: equipped with a 256 GB hard disk
• Data: speed, distance, pressure, inclination sensor, and time can be displayed on the screen
• Resolution: 1024*768
• Picture format: JPG
• Video format: AVI/MPEG4
• Can generate a pipe report

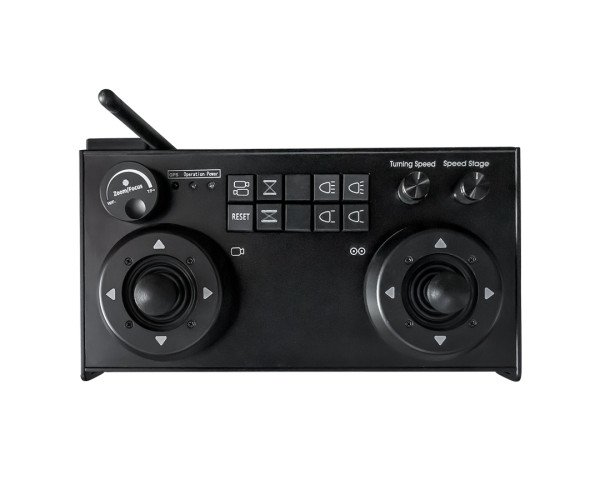

Wireless Joystick Controller

• Zoom: in and out
• Joystick: controls the camera, the crawler's moving direction
• Working distance: within 10 meters

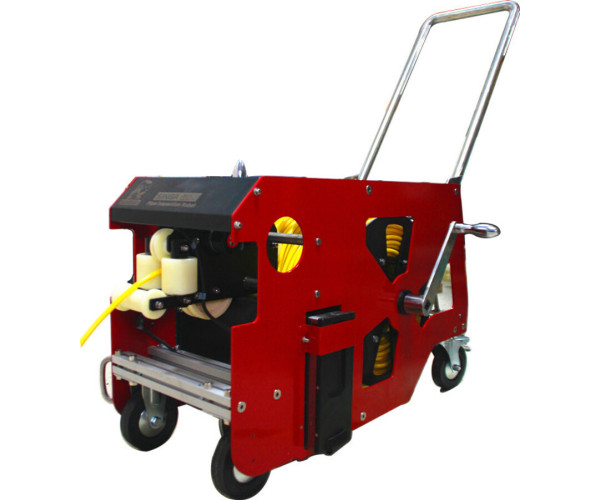

Cable Reel/Drum (Motorized optional)

• Meter counter
• Cable length: 393’/120m, up to 985’/300m (optional)
• Motorized cable reel (optional)
• Cable rolls in and rolls out automatically (optional)
• Size: 30”/780mm * 16”/410mm * 19”/490mm

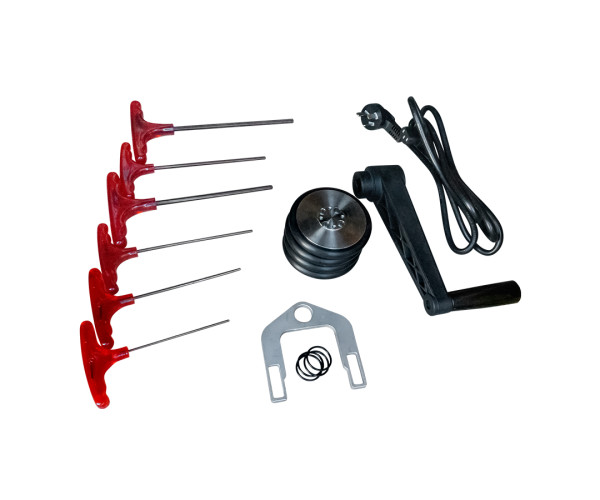

What's in the box:

1. Monitor / Control box on the Stand
2. SSD drive (integrated)
3. Pan-and-Tilt camera
4. Crawler (tractor)
5. Wireless joystick control unit
6. Cable on the reel
7. Reel drive: motor (optional)
8. Meter counter

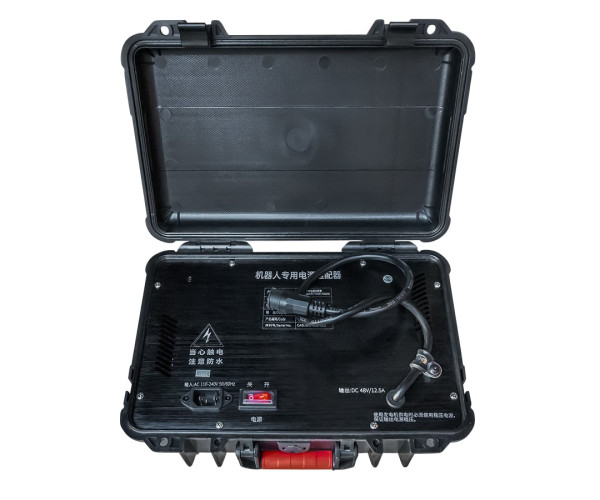

9. Power adapter
10. Power Cable
11. Battery (optional)
12. Winding handle
13. Wheel sets
14. Hex key set
15. Set of screws
16. Additional gaskets
17. Keyboard
18. Mouse
