FlexiCam-Medium Plumbing Inspection Push Camera HD

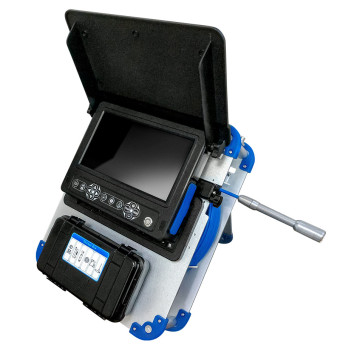

FlexiCam-Medium Plumbing Inspection Push Camera combines reliability and heavy-duty performance. The control box includes a 9" monitor. The 0.27"/7 mm push cable with lengths of 131'/40 m, 198'/60 m, or 262'/80 m allows inspection of pipes from 1"/25 mm up to 2'/600 mm. The flexible yet rigid cable easily passes 90° bends in 2"/50 mm pipes and larger. A wide range of HD camera options with various diameters, self-levelling, and transmitter features ensures efficient performance for your specific tasks.

Practical Inspection Range: Optimized for pipe diameters from 1.5” to 10” (up to 12" with maximum skid extensions)

Camera Heads & Hardware Configuration:

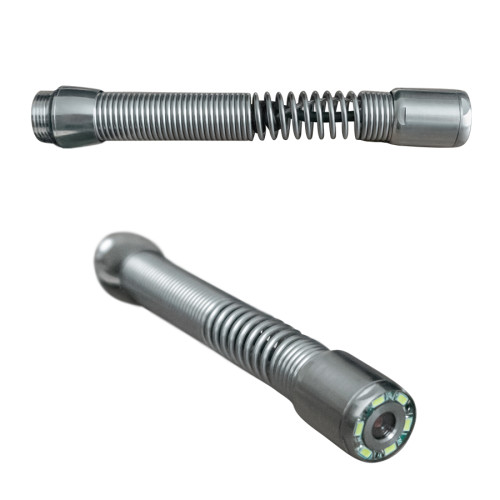

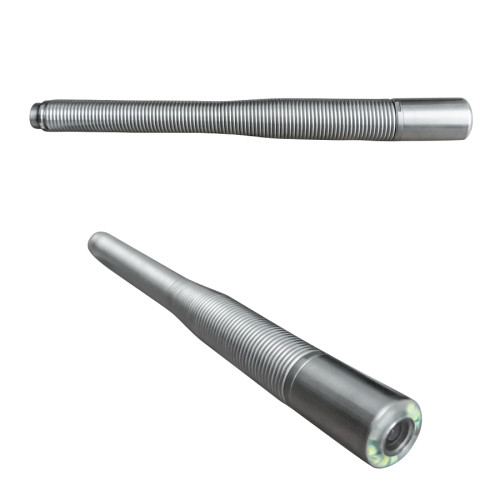

0.66" (17 mm) Slim Head: 6 LEDs | Includes 0.9" (23 mm) skid

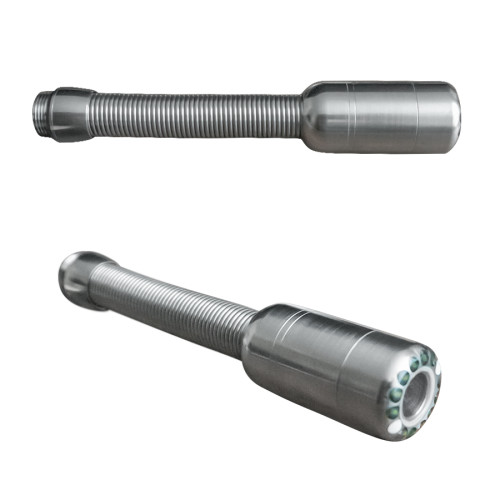

0.9" (23 mm) Base Head: 12 LEDs | Includes 1.5" & 3.1" (40/80 mm) skids

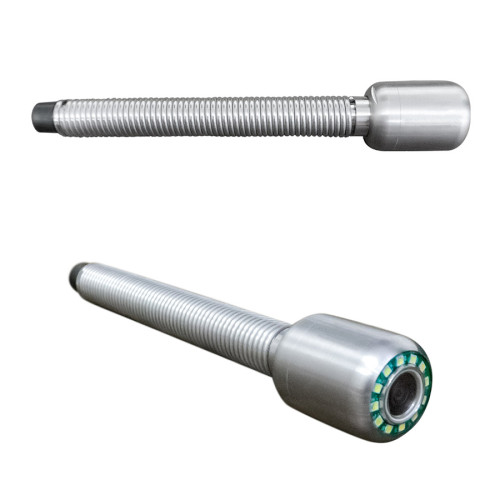

1.5" (38 mm) Heavy-Duty Head: 18 LEDs | Includes 4.3", 6", & 8.5" (110/150/220 mm) skids

Monitor & Data Logging: 9" TFT Color LCD (1280×720 screen resolution) | Digital DVR video capture (1280×720 MP4 format) | 10x digital zoom | External storage up to 256 GB (8 GB card included)

Optics & IP Rating: 105° Wide-Angle view, sapphire glass lens, IP68

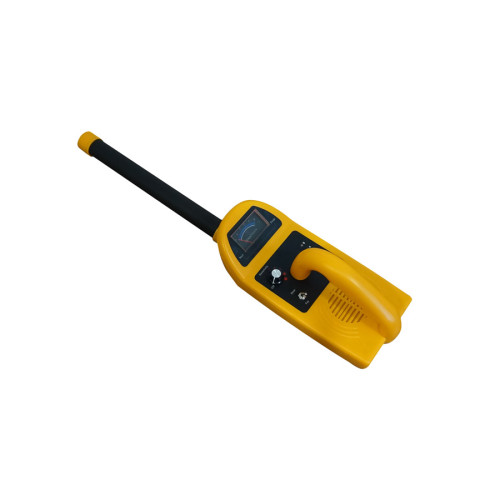

Underground Tracking: Optional 512Hz internal frequency transmitter (available on 0.9",1.1",1.5" (23/28/38 mm heads only)

Push Cable & Reel: Ø 0.27” (7 mm) high-flex fiberglass rod | Lengths: 131 ft (40 m) / 198 ft (60 m) / 262 ft (80 m) | Integrated digital distance counter

Battery: 7+ hours continuous runtime

Package Includes:

Heavy-Duty Hardshell Case with Integrated 9" Color Monitor and Control Box, Base Camera Head, Manual Push Cable Reel, Built-in Rechargeable Battery, Remote Control Handset, Heavy-Duty Interface Cable, Power Adapter, Protective Skids, Wireless Keyboard, Integrated Microphone, 8GB SD Card with USB Reader, Replacement Gaskets, Hex Key, User Manual
