FlexiCam-PTHD-mini portable pan-and-tilt sewer push camera

The FlexiCam-PTHD-mini portable pan-and-tilt sewer push camera is designed to work in sewers, ducts, and pipelines. A flexible cable allows navigation through pipes with multiple turns for up to 30 meters. With the pan-and-tilt HD camera, inspections in sewer or duct areas can be performed more thoroughly. The HD camera head with high resolution can be manipulated for multi-directional observations. FlexiCam-PTHD-mini plumbing camera can record videos and save photos on a flash card or SD card. A 512 Hz transmitter is built into the camera head. The system also includes zoom, a meter counter, an integrated keyboard, a storage box for accessories, a sunshade, and an integrated battery.

Technical specifications

Camera and cable

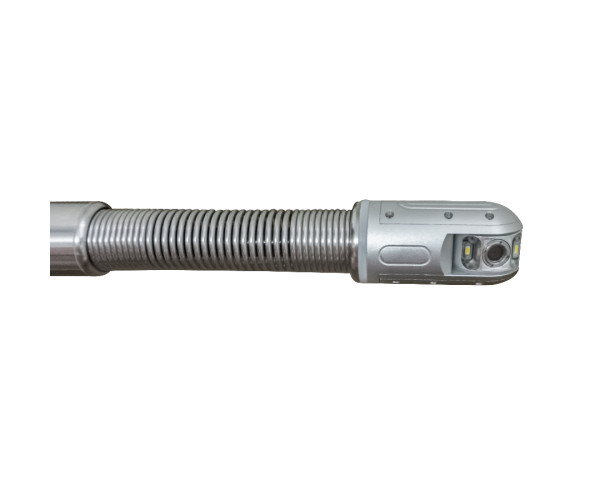

• Camera diameter: 28 mm / 1.1 inch
• Resolution: 720P (1280×720)
• Sensor: 1/4" SONY CMOS
• LEDs: 2 superbright
• Waterproof: IP68
• Angle of view: 90°
• Meter counter
• Transmitter
• Zoom: 8×
• Cable reel size: Ø 13" / 332 mm × 2.3" / 59 mm

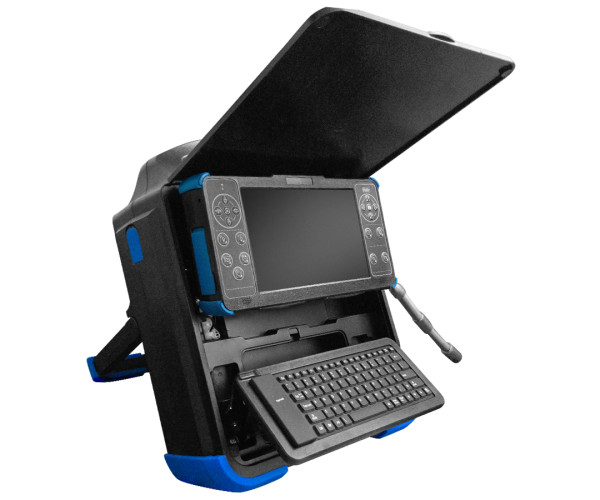

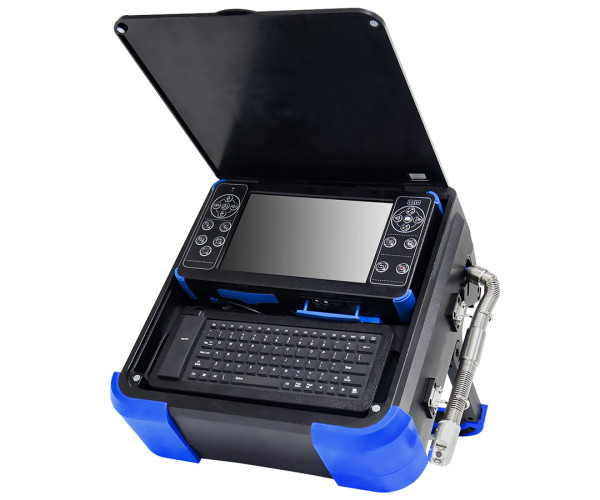

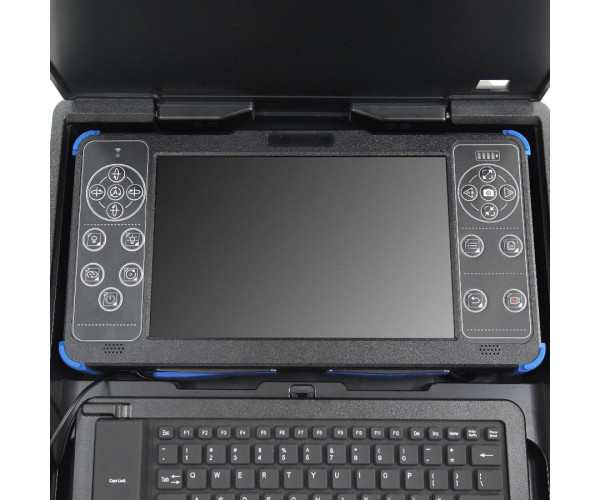

Monitor and control unit

• Monitor: HD LCD 10.1 inch
• Monitor resolution: 1280×800 HD
• Video/image recording
• One-touch recording
• Battery indicator
• Working time: up to 4 hours, 6000 mAh, 12V

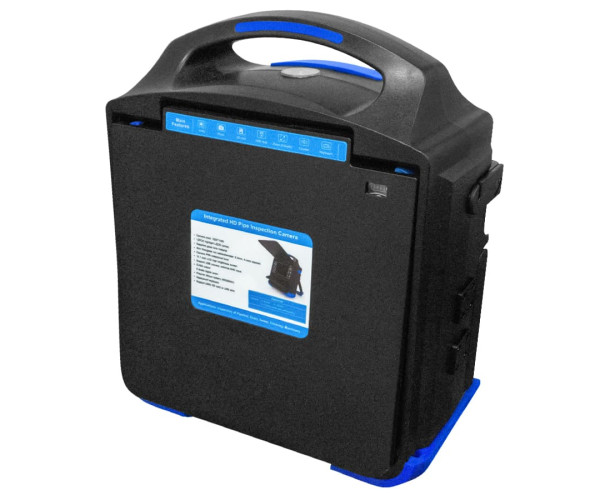

• Unit size: 505 × 419 × 180 mm / 19.9 × 16.5 × 7 inches

What's in the box

1. Monitor / Control box
2. Push cable on the reel
3. Meter counter
4. PT camera
5. Remote control
6. Headphones with microphone

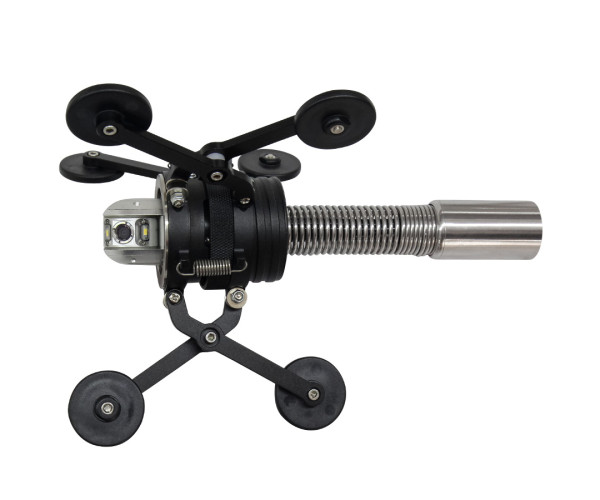

7. Skids
8. SD card
9. USB adapter for SD card
10. Replacement gaskets
11. Power adapter
