Model:
GT200
US$37,290
VAT: US$33,000
  0 reviews

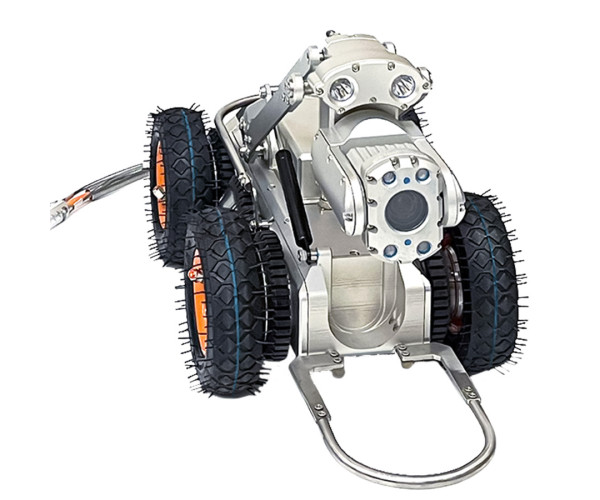

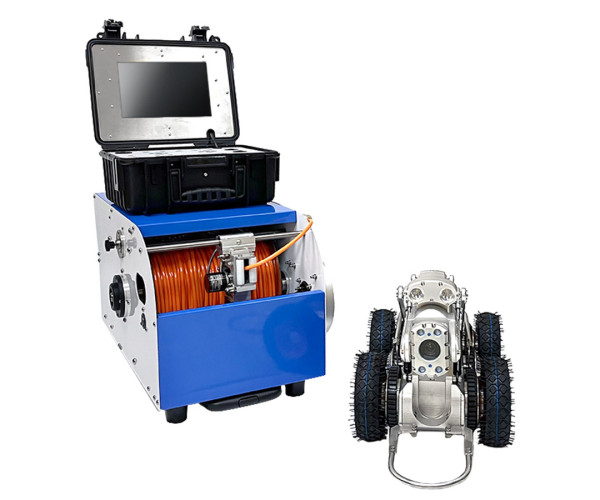

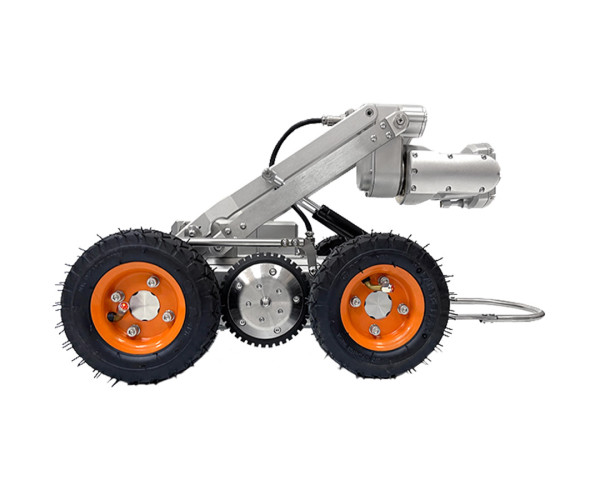

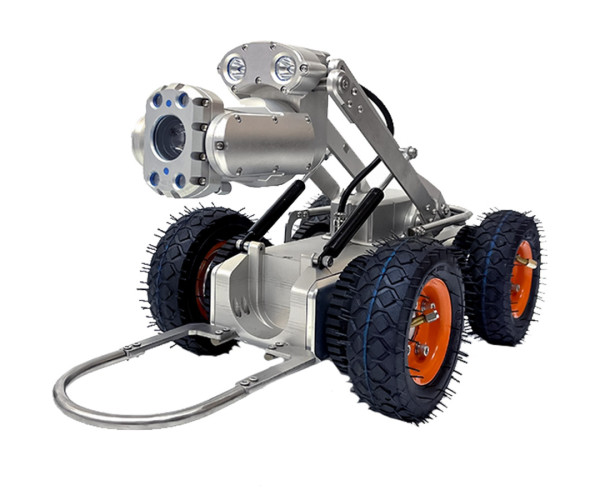

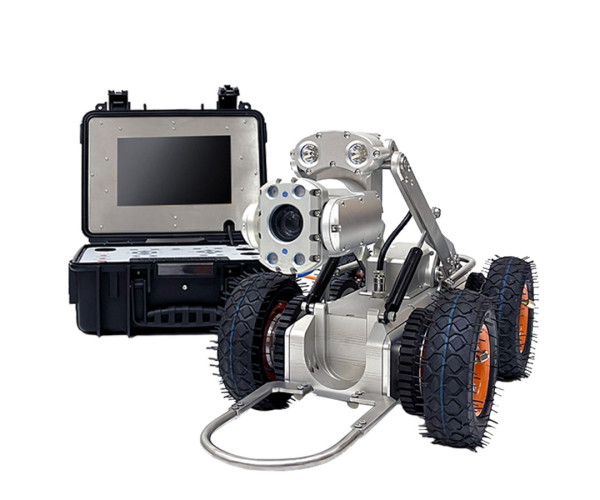

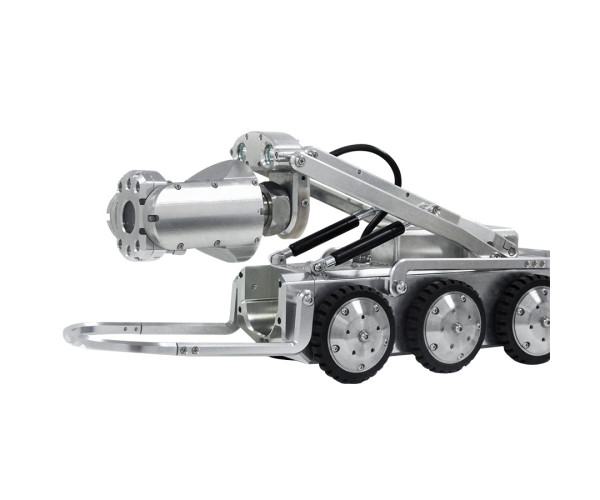

 Crawler GT200 Robotic Inspection System is applicable in pipes from 6 inch/150 mm to 78 inch/2000 mm. The video diagnostic trolley is equipped with 4 motors, which allows the tractor to move forward, backward, right and left. The video inspection system is equipped with a 360-degree pan and 220-degree tilt front camera with HD image quality. The pipe inspection system has an additional rear view camera, an inclinometer, a set of wheels of different diameters, a meter counter, superbright LEDs to illuminate the inspection area, a 10-inch monitor, and reporting software.

Specifications:

Camera Head:

Camera Resolution: 1920*1080

Light sensitivity: 16*10000 LUX

Zoom: 120 times (10X optical, 12X digital)

Light: 4 high brightness LEDs

Pan rotation: 360 degrees

Tilt rotation: 220 degrees

Auto focus: yes

Operating temperature: -10 +50 degrees Celsius

Camera Body Diameter: 4 inch/105 mm

Camera weight: 3.4 kg

Moisture protection class: IP68 (up to 33 feet/10 meters immersion in water)

Robot tractor:

For pipes from 6 inch/150 mm to 78 inch/2000 mm

Camera lifting mechanism: yes

Speed 0-33 feet/10 meters per minute

4 wheel drive

Rear View Camera

Weight 15 kg

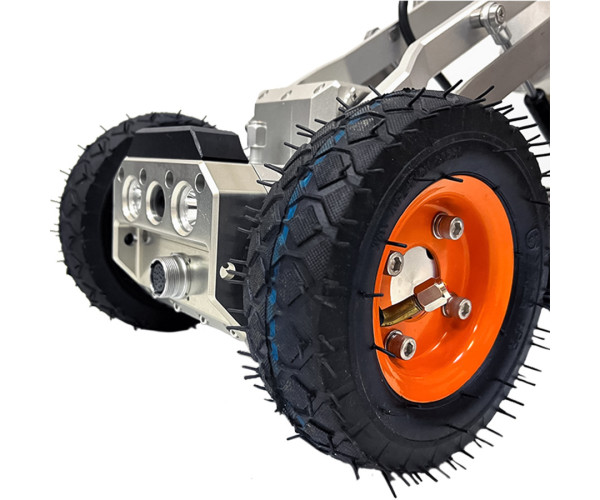

Two sets of wheels: 5 inch/130mm (4pcs), 8 inch/210mm (4pcs)

Second camera (rear view)

Waterproof: IP68

Power supply: 120-230V.

Monitor and control unit:

Screen diagonal: 10 inches

Resolution: 1920 x 1080

Photo Format: Jpeg

Video format: AVI

Keyboard

Interface: English

Moisture protection class: IP 54

Coil and cable:

Cable length: 394 feet/120 meters, 656 feet/200 meters

Cable Diameter: 8.3mm

Automatic cable reel drive

Pump

Meter counter

Weight 60 kg

Moisture protection class: IP 53

Operating temperature: -20 + 55 °C
