GEN-2S HD Pan-and-Tilt Borehole Inspection System

  • GEN-2S combines a 100-bar stainless-steel camera head with motorized cable deployment for deep well and borehole inspections. The 3" (75 mm) HD camera provides 360° pan, 180° tilt, and adjustable focus for detailed examination of the borehole wall. Cable options extend to 4,922 ft (1,500 m), while maximum camera-head submersion is 3,280 ft (1,000 m). A 10" HD monitor displays live video, with photo and video recording for inspection documentation.

USD $14,000
GEN-2S HD Pan-and-Tilt Borehole Inspection System
GEN-2S HD Pan-and-Tilt Borehole Inspection System

Controlled Camera Viewing and Deployment in Deep Boreholes

The pan-and-tilt camera lets operators direct the view toward a selected section of the casing for closer examination. Adjustable focus and LED brightness help adapt the image to the viewing distance and conditions inside the borehole.

The motorized reel provides adjustable deployment and retrieval speeds from 0–98 ft/min (0–30 m/min). It operates on AC 110–240 V from mains power or a compatible generator for field inspections. A digital footage counter measures cable payout as an approximate inspection-depth reference. The control unit has its own rechargeable battery for viewing and recording.

The 10" control-unit monitor displays HD inspection video. MP4 video and JPEG images are recorded at 1280 × 720 resolution for reviewing findings and comparing conditions before and after service work. Cable selection determines available deployment length; the camera head’s submersion limit remains unchanged.

Key Advantages

  • Deep Submerged Inspection. The stainless-steel camera head is rated to 100 bar, with a maximum submersion depth of 3,280 ft (1,000 m) for deep underwater borehole inspections.

  • Controlled Viewing Direction. The 3" (75 mm) HD camera provides 360° pan, 180° tilt, and adjustable focus for examining selected sections of the borehole wall

  • Variable-Speed Motorized Reel. Deployment and retrieval speeds from 0–98 ft/min (0–30 m/min) allow operators to adjust cable movement during inspection and recovery

  • Cable Options up to 1,500 m. Cable lengths from 656 ft (200 m) to 4,922 ft (1,500 m) accommodate different site requirements. The large reel serves both the 1,000 m and 1,500 m configurations

  • HD Viewing and Recording. A 10" HD monitor displays live inspection video. MP4 video and JPEG images are recorded at 1280 × 720 resolution for reviewing findings with clients and documenting changes after service work.

System Components

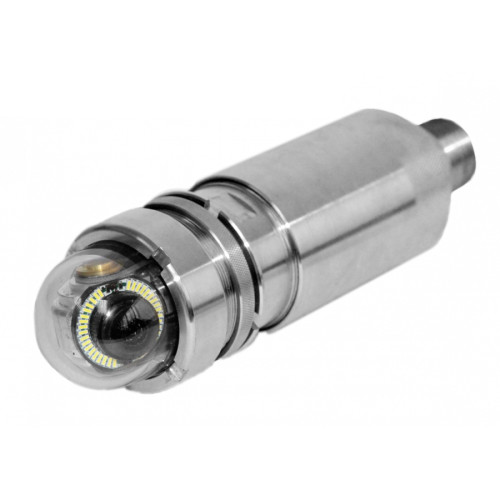

3" (75 mm) HD Pan-and-Tilt Camera Head
360° pan, 180° tilt, and adjustable focus provide controlled viewing of the borehole wall. The stainless-steel head features adjustable LED illumination and a toughened-glass viewing window. Maximum pressure is 100 bar, with a maximum submersion depth of 3,280 ft (1,000 m)

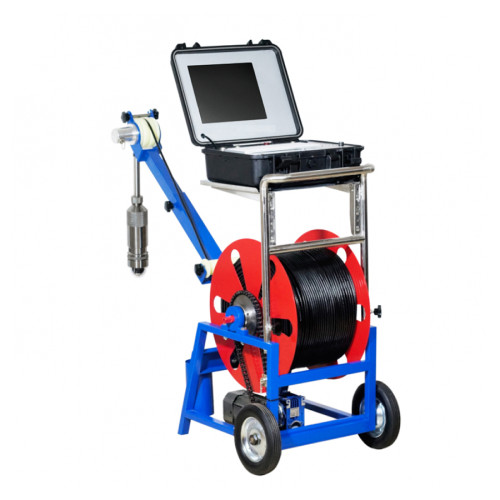

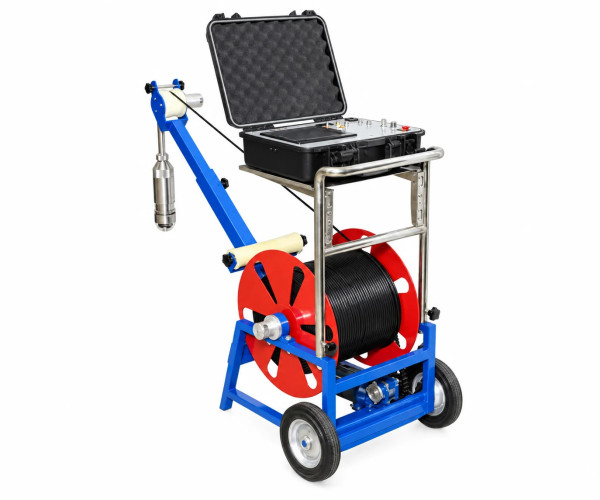

Standard Motorized Cable Reel
Motorized deployment and retrieval for cable configurations up to 1,640 ft (500 m). The reinforced 0.31" (8 mm) cable passes through an external guide pulley, while a digital footage counter measures cable payout for an approximate inspection-depth reference

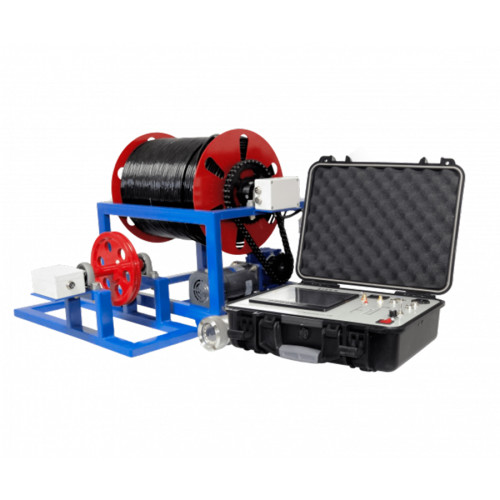

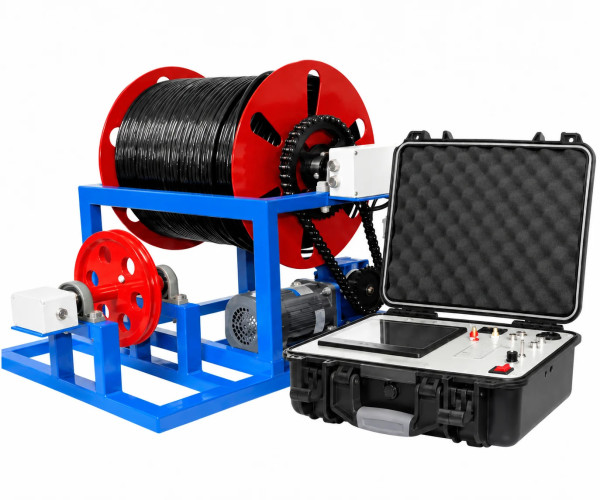

Large Motorized Cable Reel
Supports longer cable configurations up to 4,922 ft (1,500 m). The same reel is used for the 1,000 m and 1,500 m configurations, with motorized deployment and retrieval, an external guide pulley, and digital cable-payout measurement.

Both reels provide adjustable speed from 0–98 ft/min (0–30 m/min) and require AC 110–240 V from mains power or a compatible generator. Deployment is limited by the selected cable length; the camera head’s maximum submersion depth remains 3,280 ft (1,000 m)
Reviews: 0

There are no reviews for this product.

Compare Models
AquaCam HD Pan-and-Tilt Well Inspection Camera
AquaCam HD Pan-and-Tilt Well Inspection Camera
USD $6,300
AquaCam HD Dual-Camera Borehole Inspection System
AquaCam HD Dual-Camera Borehole Inspection System
USD $13,500
AquaCam HD Dual-Camera 360° Well Inspection System
AquaCam HD Dual-Camera 360° Well Inspection System
USD $8,900

Frequently Asked Questions

GEN-2S uses an HD pan-and-tilt camera with adjustable focus. Its 100-bar camera head supports submersion to 3,280 ft (1,000 m), with cable options up to 4,922 ft (1,500 m). AquaCam dual-camera systems use separate down-view and rotating side-view cameras, with shorter cable configurations and a 50-bar head rating

Cable length and maximum submersion are separate specifications. The selected cable determines available deployment length; the camera head’s submerged operating limit remains 3,280 ft (1,000 m). The 1,000 m and 1,500 m configurations use the same large motorized reel

The camera head has a nominal diameter of 3" (75 mm). The internal opening must provide clearance for the complete camera assembly, including any installed centralizer. Send PipeXpert the actual internal diameter so compatibility can be checked.

Water clarity affects image quality. Adjustable lighting helps illuminate the inspection area, but suspended sediment can still restrict visibility.

Yes. The motorized reel can operate from a compatible generator supplying AC 110–240 V. The control unit has its own rechargeable battery for viewing and recording; this battery does not power the reel. Generator capacity must match the reel’s power requirements

The control unit records MP4 video and JPEG images at 1280 × 720 resolution. The digital footage counter measures cable payout, providing an approximate inspection-depth reference. Its reading can differ from actual camera depth because of cable routing or slack

GEN-2S includes a one-year PipeXpert warranty and technical support. Contact PipeXpert for assistance with configuration and operation.

PipeXpert ships throughout Canada and the United States. We pay the customs duties, so you won’t have to pay them when your equipment arrives.

International shipping is also available, with delivery terms confirmed in your quotation. Shipping cost and estimated delivery time depend on the selected configuration and destination.
