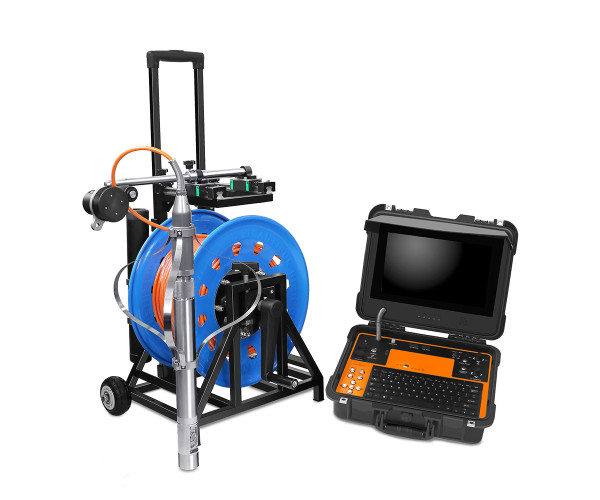

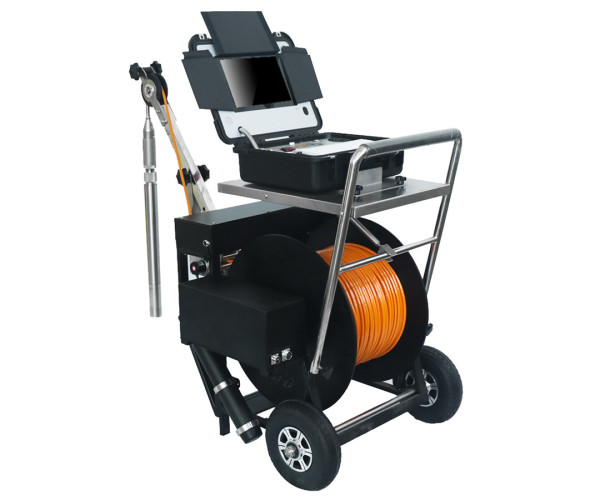

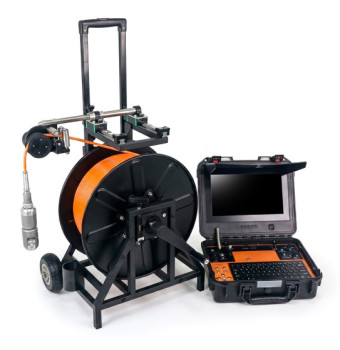

AquaCam HD Dual-Camera Borehole Inspection System
- For deep well and borehole inspections down to 1,640 ft (500 m), the system combines a fixed down-view camera for the bore path with a 360° rotating side-view camera for detailed casing-wall inspection. Manual focus on the side-view camera and adjustable LED illumination support closer examination of areas of interest, while the reinforced 8.2 mm cable and IP68 protection up to 50 bar are suited to demanding long-depth deployments. A heavy-duty motorized reel with variable 0–20 m/min deployment and retrieval provides controlled cable handling throughout the inspection.
The system is intended for professional visual assessment of deep wells and boreholes where the inspection must cover both the bore path and the surrounding wall without repeated repositioning of the camera assembly.
The two-camera configuration provides HD 720P imaging from a fixed down-view camera and a 360° rotating side-view camera with manual focus. This allows the operator to maintain visibility below the camera while examining specific sections of casing, screens, joints, deposits, or other visible conditions along the wall.
For long deployments, the camera head and reinforced cable are IP68 rated up to 50 bar. The heavy-duty motorized reel provides adjustable deployment and retrieval from 0–20 m/min, with an emergency stop for controlled cable handling.
A digital footage counter tracks cable payout in feet or meters with less than 1% stated error, helping relate recorded observations to approximate inspection depth. Inspection video is displayed on a 13-inch HD monitor and can be recorded as MP4 video, JPEG images, and audio for later review and reporting.
Built-in temperature and compass readings provide additional on-screen context during the inspection, while adjustable LED illumination helps maintain visibility as bore diameter, water clarity, and viewing distance change.
Together, these features support detailed condition assessment, documented inspections, and planning of maintenance, rehabilitation, retrieval, or repair work in deep wells and boreholes.
Specifications
Control Unit
-

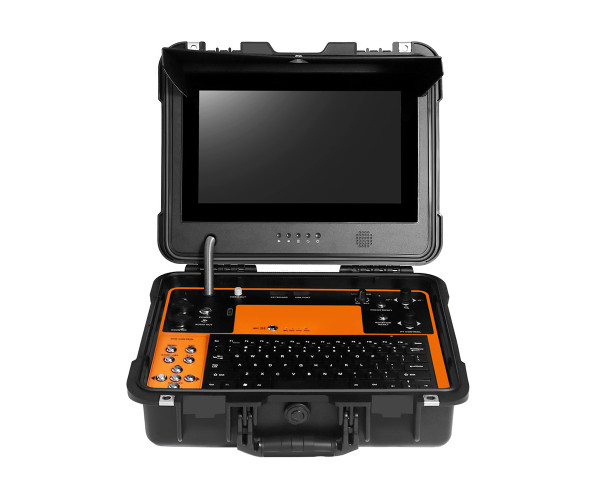

Monitor13" IPS TFT, HD 720P
-
RecordingMP4 video and JPEG images, both at HD 1280 × 720
-

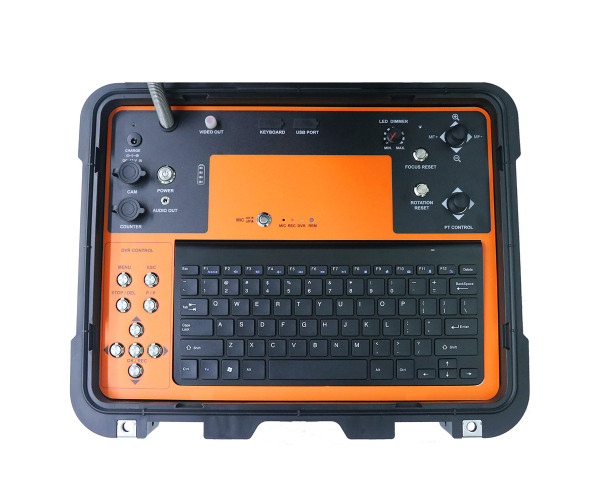

Camera Controljoystick control for side-camera rotation and manual focus
-
Microphoneintegrated microphone
-
Powercontrol box and reel: AC 110–240 V, 50/60 Hz
-
BatteryLi-ion, 7000 mAh, up to 8 hours
-
Dimensions16.1" × 13.8" × 5.5" (410 × 350 × 140 mm)
-
Weight44 lbs (20 kg)
-
WaterproofIP 54

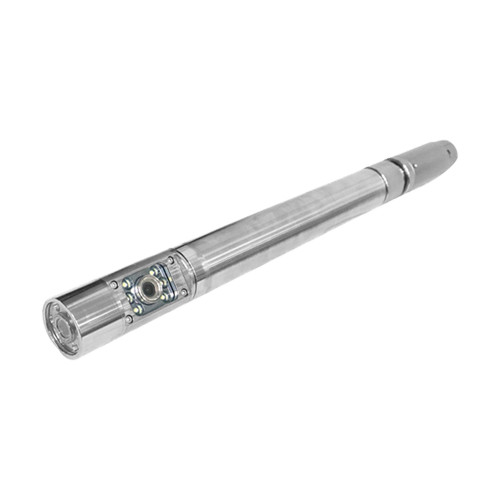

Camera Head
-

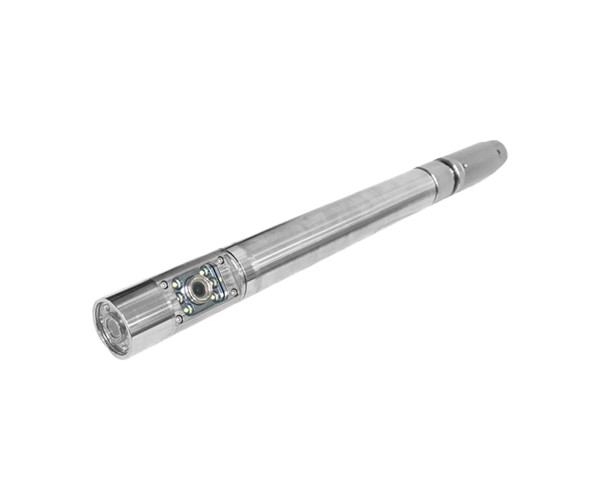

Camera Featuresfixed down-view camera + 360° rotating side-view camera with manual focus, temperature sensor & compass
-
Camera Head1.8" (45 mm)
-
Camera Length20.5" (520 mm)
-
Resolution1/3" CMOS, 1.3 MP, HD 720P, 1280 × 720
-
Field of View120º
-
Focal Range18 mm to ∞
-
Protective Lenssapphire glass
-
Lighting6 adjustable ultra-bright LEDs per camera, 12 total
-
WaterproofIP68, up to 50 bar
-
Camera Materialstainless steel
-
Operating Temperature14°F to 122°F (-10°C to +50°C)
Cable & Reel
-
Cable Length656 ft (200 m) / 984 ft (300 m) / 1640 ft (500 m)
-
Cable Diameter0.32" (8.2 mm)
-
Footage Counterbuilt-in digital footage counter, ft/m selection, reset button, <1% error
-
WaterproofIP68, up to 50 bar
-

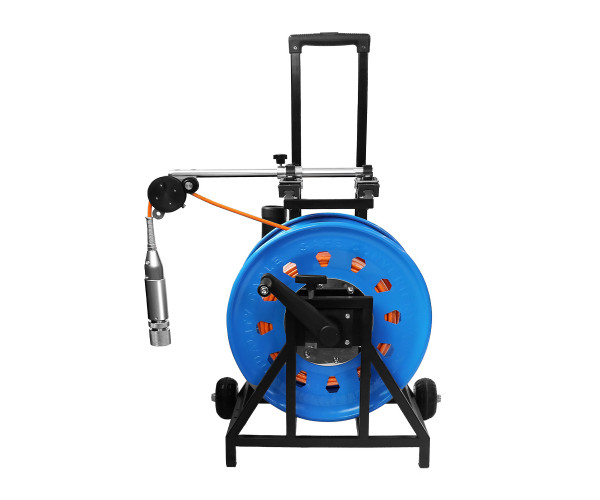

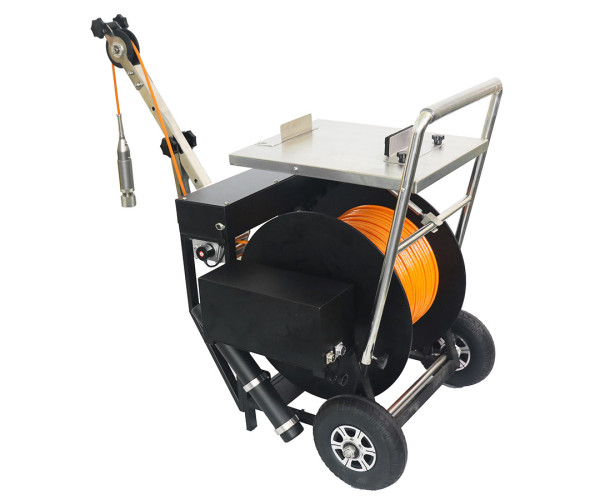

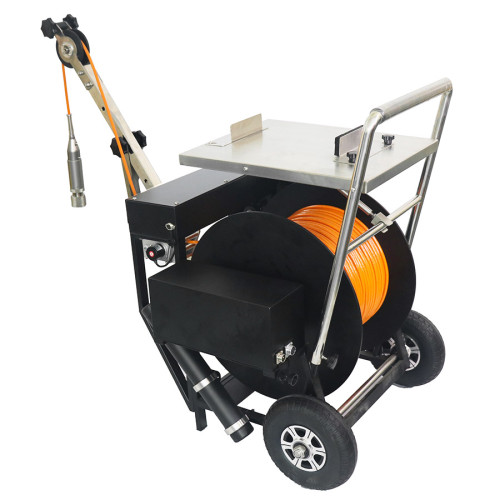

Motorized Winchadjustable winding and unwinding speed: 0–20 m/min, with emergency stop
-
Reel Weightapprox. 242.5–330 lb (110–150 kg), depending on cable length
-500x500.jpg)
-500x500.jpg)
%20copy-220x200.jpg)
Frequently Asked Questions
How do the down-view and side-view cameras work together?
The fixed down-view camera shows the bore path below the camera head, while the 360° rotating side-view camera examines the surrounding casing wall. Manual focus on the side camera allows closer inspection of specific areas of interest.

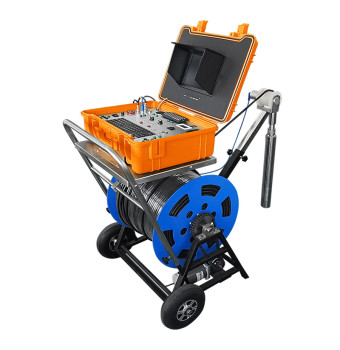

How is this model different from the 984 ft (300 m) AquaCam Dual-Camera?
This model is configured for longer and deeper deployments, with cable options up to 1,640 ft (500 m), a reinforced 8.2 mm cable, and a heavier motorized reel. The 300 m model is a more compact option for shallower inspections.
What well sizes and cable lengths are supported?
The recommended minimum borehole diameter is 3" (76 mm). Cable options are 656 ft (200 m), 984 ft (300 m), and 1,640 ft (500 m).
Is the camera suitable for deep submerged inspections?
Yes. The camera head and cable are IP68 rated up to 50 bar. This pressure rating is separate from the supplied cable length and maximum physical deployment distance.
What types of inspections is this system used for?
It is used for borehole and well inspections where contractors, drilling crews, engineers, or maintenance teams need to assess casing condition, screens, obstructions, deposits, corrosion, and other visible internal conditions.
How are deployment and inspection depth tracked?
Can the system record inspections?
Yes. The control unit records MP4 video, JPEG images, and audio for documentation and later review.
Can the system operate on battery power?
The control unit has a 10,500 mAh Li-ion battery with up to 4 hours of operation. AC power is required for the motorized reel.
What warranty and support are available?
The system includes a one-year standard manufacturer's warranty. Replacement components and after-sales support are available through PipeXpert.
Where do you ship?
PipeXpert ships throughout the United States and Canada and also supports international orders. Applicable duties, taxes, and brokerage fees are covered for U.S. and Canadian orders.
