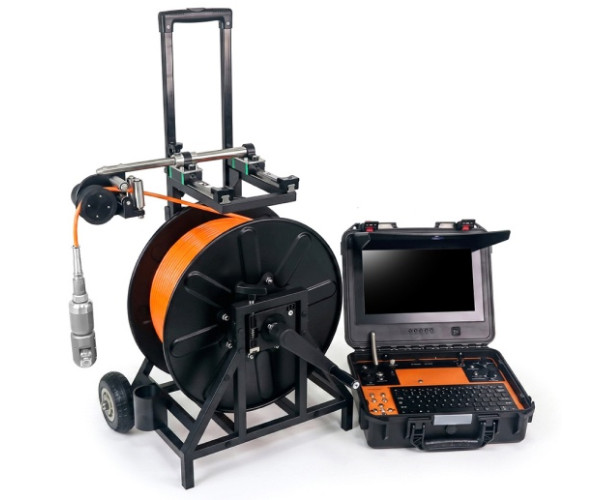

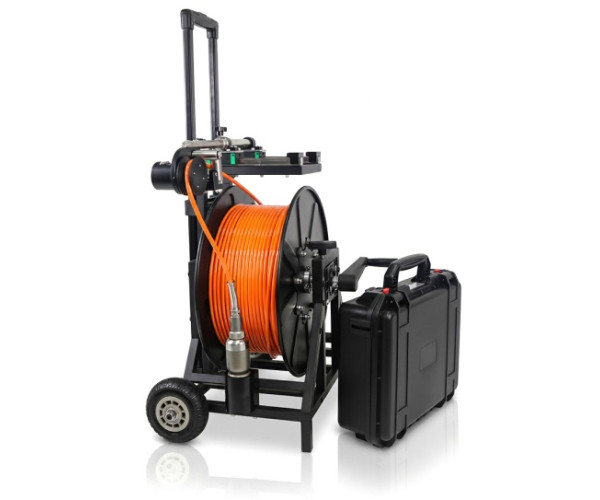

AquaCam HD Pan-and-Tilt Well Inspection Camera

AquaCam HD Pan-and-Tilt Well Inspection Camera

SKU: ACWC

Designed for professional well and borehole inspections, AquaCam provides continuous 360° pan, 180° tilt, and adjustable focus for detailed viewing of casing walls, joints, screens, and other areas of concern. The 2″ (50 mm) HD camera head delivers live video to a 13″ HD monitor, with photo and video recording for documentation, reporting, and maintenance planning. A digital depth counter tracks camera position along the 390 ft (120 m) cable, while the IP68 stainless-steel camera head is rated to 10 bar and supports submersion depths up to 328 ft (100 m).

USD $6,300

The AquaCam HD Pan-and-Tilt Well Inspection Camera is built for professional visual inspection of wells and boreholes where precise control of the viewing direction is important. The motorized 2″ (50 mm) camera head provides continuous 360° pan, 180° tilt, and adjustable focus, allowing the operator to examine casing walls, joints, screens, deposits, obstructions, and other visible areas without repositioning the entire camera assembly.

Live inspection video is displayed on a 13″ HD monitor. Photos and video can be recorded for documentation, reporting, before-and-after comparisons, and planning of cleaning, repair, or rehabilitation work.

A 390 ft (120 m) cable provides access for deep well inspections, while the digital depth counter tracks camera position along the cable to help relate recorded observations to approximate inspection depth.

The stainless-steel camera head is IP68 rated and designed to withstand pressures up to 10 bar, with a maximum submersion depth of 328 ft (100 m). Its construction is suited to repeated field inspections in wells and boreholes.

Six adjustable high-output LEDs built into the camera head provide controllable illumination as bore diameter, water clarity, and viewing distance change. Combined with adjustable focus and full pan-and-tilt movement, they help the operator examine specific areas in greater detail.

An integrated 10,500 mAh rechargeable Li-ion battery supports up to four hours of operation. The 110–240 V AC input also allows the system to operate from mains power when available.

AquaCam can be used to inspect well casings, screens, joints, visible deposits, obstructions, and other accessible internal conditions before and after cleaning, repair, or rehabilitation. The system is also suitable for compatible shafts, reservoirs, and tanks with unobstructed openings from 2″ to 30″.

A one-year warranty and ongoing technical support are included for after-sales assistance and routine field use.

Specifications

Control Unit

Monitor

13" IPS TFT, HD 720P
Recording

MP4 video and JPEG images, both at HD 1280 × 720
Camera Control

joystick control for side-camera rotation and image sharpness
Microphone

integrated microphone
Power

control box & reel AC 110–240 V (50-60 Hz)
Battery

Li-ion, 10500 mAh, up to 4 hours
Dimensions

16.1" × 13.8" × 5.5" (410 × 350 × 140 mm)
Weight

44 lbs (20 kg)
Waterproof

IP 54

Camera Head

Camera Features

HD Pan & Tilt Camera (360° Pan / 180° Tilt), Adjustable Focus
Camera Head

2" (50 mm)
Camera Length

6.1" (155 mm)
Resolution

sensor 1/3" CMOS 1.3 MP HD 720P 1280x720
Field of View

120º
Focal Range

0.87"/22 mm to ∞ (joystick adjustment)
Protective Lens

sapphire glass
Lighting

6 ultra-bright LEDs
Waterproof

IP68, up to 10 bar
Camera Material

stainless steel
Operating Temperature

14°F to 122°F (-10°C to +50°C)

Cable & Reel

Cable Length

394 ft (120m)
Cable Diameter

5/16" (8 mm)
Footage Counter

built-in digital footage counter, ft/m switch, reset button, <1% error
Waterproof

IP68, up to 10 bar
Reel Weight

50.7 - 66.1 lbs (23 - 30 kg)

System Components

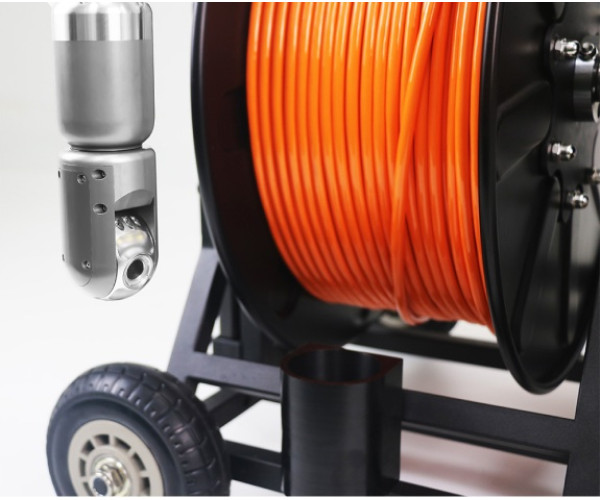

2" (50 mm) Pan-and-Tilt Camera Head

Features 360° continuous pan and 180° tilt with joystick control. Optimized for detailed side-wall casing inspection and defect mapping

1.6" (40 mm) Straight-View Camera Head (Optional)

Designed for downward vertical inspections. Compact 40 mm waterproof housing with integrated high-intensity axial LED illumination

Reviews: 0

Average score: 0.0

There are no reviews for this product.

	This item	Recommendations
	AquaCam HD Pan-and-Tilt Well Inspection Camera USD $6,300	GEN-2S HD Pan-and-Tilt Borehole Inspection System USD $14,000	AquaCam HD Dual-Camera Borehole Inspection System USD $13,500	AquaCam HD Dual-Camera 360° Well Inspection System USD $8,900
Cable Length	394 ft (120m)	656 - 4,922 ft (200 - 1,500 m)	656 ft (200 m) / 984 ft (300 m) / 1640 ft (500 m)	656 ft (200 m) / 984 ft (300 m)
Camera Head	2" (50 mm)	3" (75 mm)	1.8" (45 mm)	1.8" (45 mm)
Camera Features	HD Pan & Tilt Camera (360° Pan / 180° Tilt), Adjustable Focus	HD Camera 360° Pan and 180° Tilt	fixed down-view camera + 360° rotating side-view camera with manual focus, temperature sensor & compass	fixed down-view camera + 360° rotating side-view camera with manual focus and built-in temperature sensor and compass
Waterproof	IP68, up to 10 bar	IP68, 10 MPa, up to 100 bar	IP68, up to 50 bar	IP68, up to 50 bar
Footage Counter	built-in digital footage counter, ft/m switch, reset button, <1% error	high-precision, digital footage counter	built-in digital footage counter, ft/m selection, reset button, <1% error	built-in digital footage counter with ft/m selection, reset function, and <1% stated error

Frequently Asked Questions

Which camera head is included, and when should I choose the optional straight-view camera?

The standard AquaCam system includes a 2″ (50 mm) HD Pan & Tilt camera head with 360° pan, 180° tilt, and adjustable focus. It is intended for detailed inspection of casing walls, joints, well screens, and selected areas at the required depth.

The optional 1.6″ (40 mm) straight-view camera provides a fixed forward view, directed downward during vertical deployment. Its smaller diameter is better suited to restricted openings and general downward inspection, but it does not provide remotely controlled sidewall viewing. The straight-view camera is sold separately; contact PipeXpert to confirm compatibility and configuration requirements.

What structures and opening sizes can AquaCam inspect?

AquaCam is suitable for water wells, boreholes, casings, shafts, reservoirs, tanks, and other compatible vertical structures. The standard Pan & Tilt camera is intended for nominal clear openings from 2″ to 30″.

The actual internal diameter must provide sufficient clearance for the 2″ camera head. Casing joints, deformation, deposits, and existing obstructions should be considered before deployment.

Why does the system have a 390 ft cable if the maximum submersion depth is 328 ft?

The system includes a 390 ft (120 m) cable to provide working length for reel placement, above-ground routing, and site setup. The manufacturer specifies a maximum submersion depth of 328 ft (100 m) and a camera-head pressure rating of 10 bar.

Cable length and maximum submerged operating depth are therefore separate specifications.

Can AquaCam record photos and video with a depth reference?

Yes. AquaCam records MP4 video and JPEG images at 1280 × 720 resolution. The digital counter measures cable payout in feet or metres and provides an approximate inspection-depth reference for reports and maintenance records.

Actual camera depth may vary slightly from the counter reading because of cable routing, slack, and well geometry.

Does water clarity affect inspection quality?

Yes. Suspended sediment, debris, and disturbed deposits can reduce visibility and reflect light back toward the camera. For best results, allow the water to settle when possible, lower the camera slowly, and adjust the LED intensity to suit the inspection conditions.

What warranty and technical support are included?

AquaCam includes a one-year warranty and ongoing technical support. Warranty coverage is subject to the applicable terms and operation within the published pressure, depth, temperature, and usage limits.

Does PipeXpert ship internationally?

Yes. International shipping is available to many destinations. Product availability, shipping eligibility, cost, and estimated delivery time are confirmed with each quotation.

PipeXpert covers applicable import duties, import taxes, and standard brokerage fees associated with the shipment.
