AquaCam-Dual-LCHD Borehole Camera

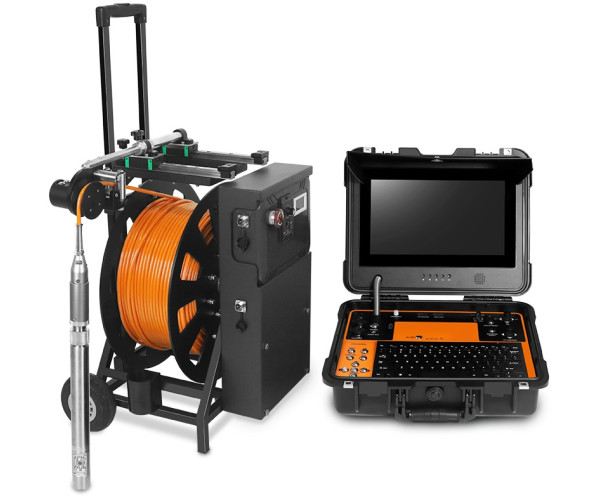

The AquaCam-Dual-LCHD well inspection system is a professional logging complex engineered for the precise diagnostic imaging of deep water wells and industrial boreholes up to 300 meters deep. Both the high-strength camera housing and the reinforced cable are rated to withstand extreme hydrostatic pressures of up to 30 Bar. This robust design guarantees full submersion safety and structural integrity at the maximum depth of a 300-meter water column. The system streams crystal-clear video and captures still photos in native HD 720P resolution. This high-definition feed displays real-time footage on the rugged operator monitor, making it an indispensable asset for detecting fine cracks, casing deformation, or scale buildup.

A manual focal adjustment mechanism allows operators to focus tightly on close-up pipe defects from just 5 millimeters away or scan the entire borehole profile using a wide-angle infinity view. The system maximizes fieldwork efficiency through an integrated telemetry module that overlays critical real-time data directly onto the video screen. Users can instantly monitor the precise payout length via the electronic depth counter. A motorized winch with smooth speed control simplifies deployment and retrieval, while an external pulley protects the cable from frictional wear against the wellhead. Powered by a high-capacity internal battery, this compact and lightweight package offers complete operational autonomy on remote, off-grid jobsites.

Camera Head:

2 cameras in one housing (side camera 360° rotation)
The side camera has manual focus capability
Camera chip: 1/3 CMOS, 1/3 MP, HD sensor
Camera resolution: Ø 45 mm | HD 720P
Protective glass material: sapphire glass
Lighting: 6 LEDs for each camera
Waterproof class: IP68 (up to 50 bar in fresh water) (1640 feet/500 meters)
Built-in temperature sensor and compass with on-screen display
Skids (protective cover)

Control Box:

Monitor: 13" LCD | 1280x720
Audio/video/photo recording
Power supply: 110~230V
Built-in battery: 10500 mA Li-ion
Waterproof class: IP54
Meter counter
Built-in WiFi module (only for Android devices)

Cable and Light Cable Reel:

Cable diameter: 8 mm
Cable length: 328feet/100m-984feet/300m
Motorized reel
Cable Material: twisted pair cable
Cable length counter with on-screen display
External pulley

Specifications

Control box

Screen

13 " / 33 cm
Monitor

IPS TFT LCD HD 720P (1280 х 720 (4:3, 16:9)
Screen Settings

brightness and contrast adjustment
Video Recording

MP4 HD 1280 x 720
Image Capturing

JPEG HD 1280 x 720
Language

English
FPS

30
Meter Counter

reset and feet/meters buttons
Camera Rotation Control

joystick
Image Sharpness Control

joystick
Keyboard

wireless
Microphone

integrated
Power

control box AC 110–240 V (50-60 Hz) or Li-Ion battery 10500 mAh (up to 4 h); reel AC 110–240 V
Battery

Li-Ion 10500 mAh working time 4 h
Case Material

plastic
Working Temperature

-25 °C +60 °С
Srorage Temperature

-15 °C +60 °С
Humidity

95%
Dimensions

16.1"(410 mm) х 13.8"(350 mm) х 5.5"(140 mm)
Weight

≈ 44lbs (20 kg)

Camera

Camera Diameter

1.8" (45 mm)
Camera Length

20.5"(520 mm)
Direction of View

0º
Resolution

sensor 1/3" CMOS 1.3 MP HD 720P 1280x720
Field of View

120º
Focal Range

18 mm - ∞
Pan-and-Tilt/Articulation

Dual HD Cameras, 360° Rotating Side Camera, Manual Focus, Temperature Sensor & Compass
Protective Lens

sapphire glass
Lighting capabilities

6 ultra-bright LEDs for each camera
Waterproof

IP68, 50 bar pressure rating, up to 1,640 ft (500 m)
Camera Material

stainless steel

Cable Reel/Probe

Cable/Probe Length

656 ft (200 m) / 984 ft (300 m)
Cable/Probe Diameter

0.31" / 8 mm
Meter Counter

digital meter counter, error less than 1%
IP level

IP68, 50 bar pressure rating, up to 1,640 ft (500 m)

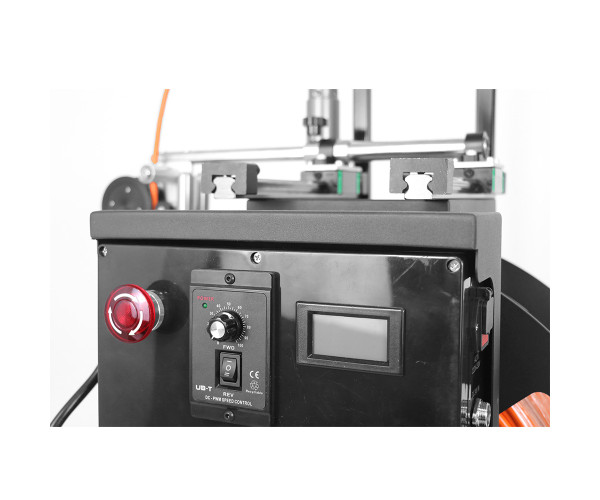

Winch

winding/unwinding control with speed adjustment, speed from 0 to 20 meters per minute
Reel Wheels

2
Reel Stopper

emergency stop button
Reel Weight

≈ 154 - 198 lbs (70 - 90 kg)

Available Options

AquaCam-Dual-LCHD Heavy-Duty Dual Borehole Inspection Camera Head

Professional 50-bar (1640 ft (500 m) waterproof dual HD borehole camera head featuring a 360° rotating side-view camera with manual focus, integrated temperature/compass sensors, and durable sapphire glass for deep well inspections

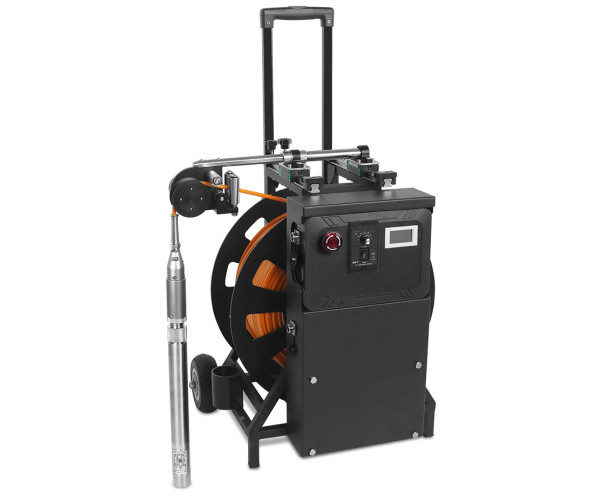

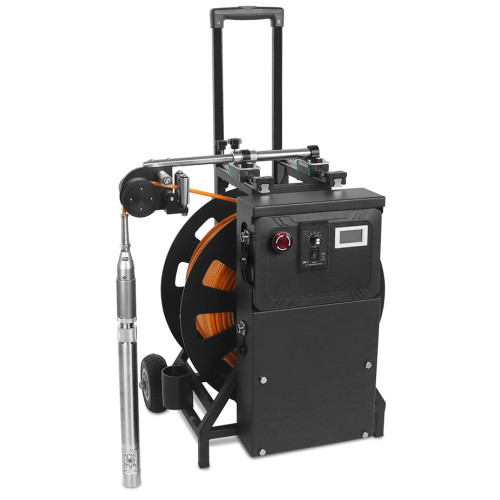

AquaCam-Dual-LCHD Motorized Cable Reel System

Heavy-duty motorized deployment winch featuring an 0.3" (8 mm) twisted-pair cable (up to 984ft/300m length), external guiding pulley, and integrated on-screen depth counter for precise borehole tracking
