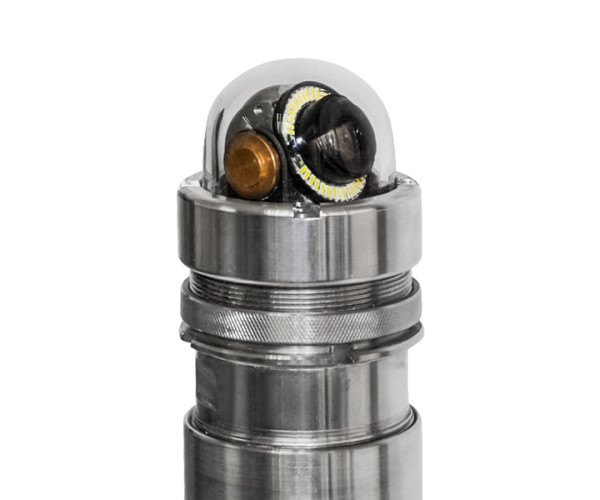

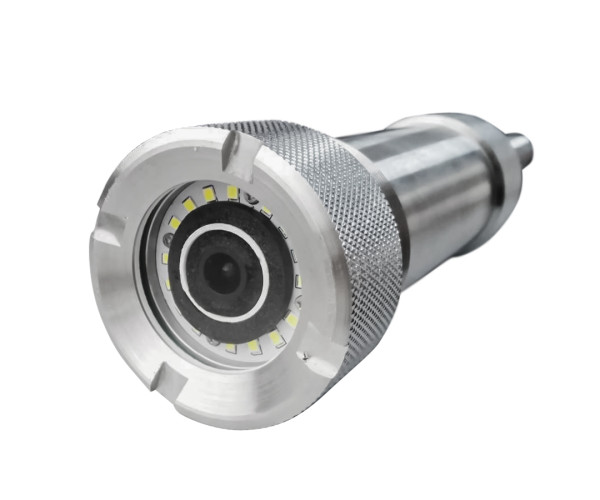

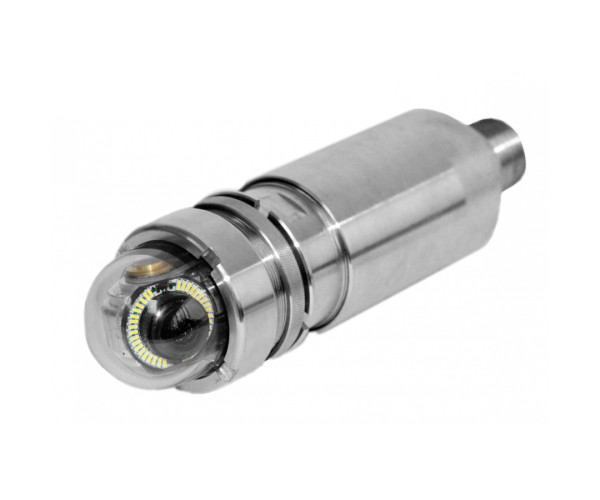

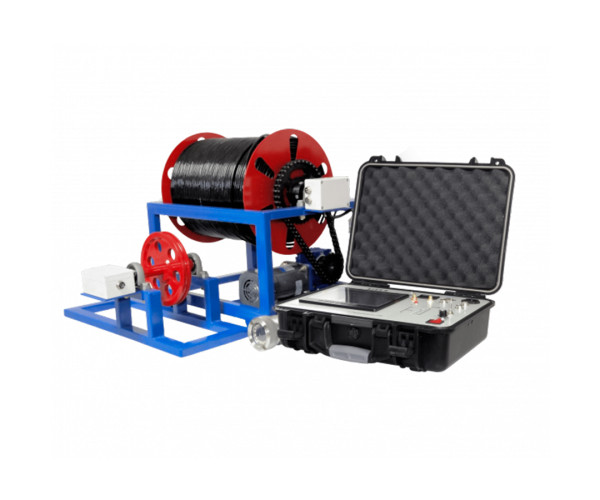

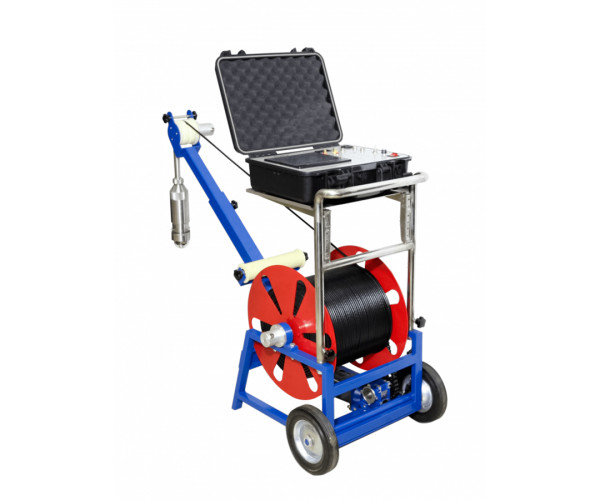

GEN-2S Borehole Camera

GEN-2S Borehole Camera System helps to view boreholes and wells, in depths up to 4922'/1500 meters. The pan-and-tilt capable camera delivers a clear image and helps ьwith effective downhole observation. The cable reel has an electric winch, easily operated from the control unit.

Technical specifications

• Camera resolution: 1280 × 720 HD
• Camera rotation: Pan 360°, Tilt 180°
• Maximum water pressure: 10 Mpa (100 BARs) – 3280'/1000 meters
• Camera diameter: 3" / 75 mm
• Camera material: Stainless steel
• Light: Superbright LEDs
• Camera focus: adjustable
• Monitor: 8" LCD color monitor
• Monitor resolution: 1280 × 720 HD
• Video recording / Image capture
• Storage: 16 GB SD card
• Electric winch: adjustable speed

What's in the box:

1. Camera

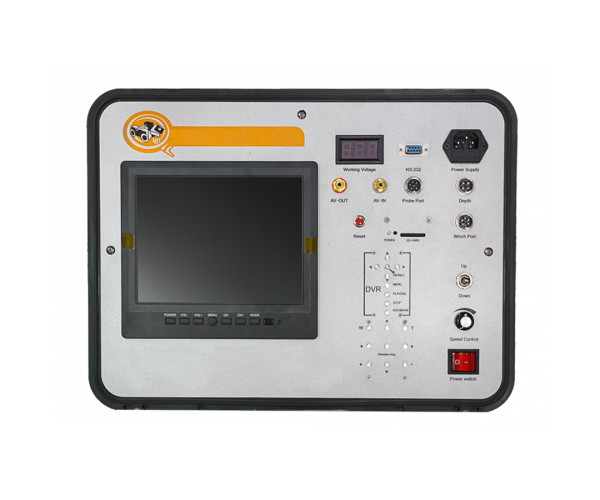

2. Control box with monitor
3. Cable on the cable reel
4. Connecting cables
5. Flash card
