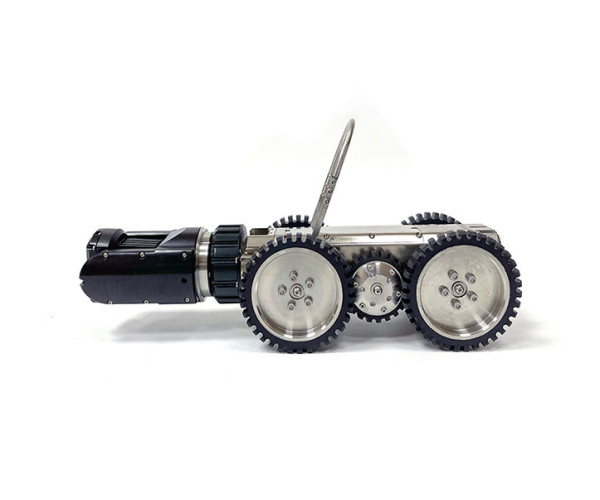

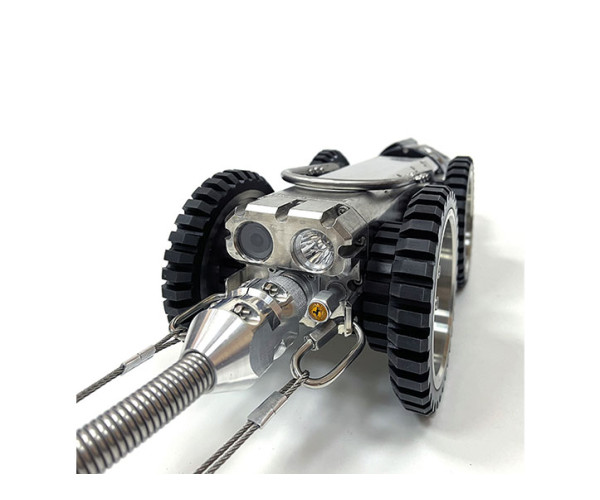

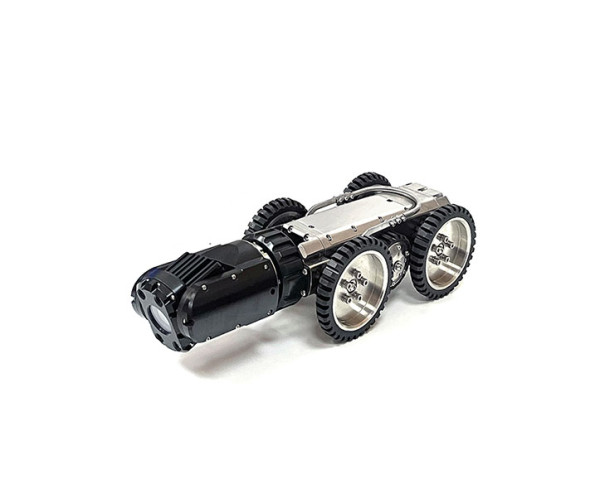

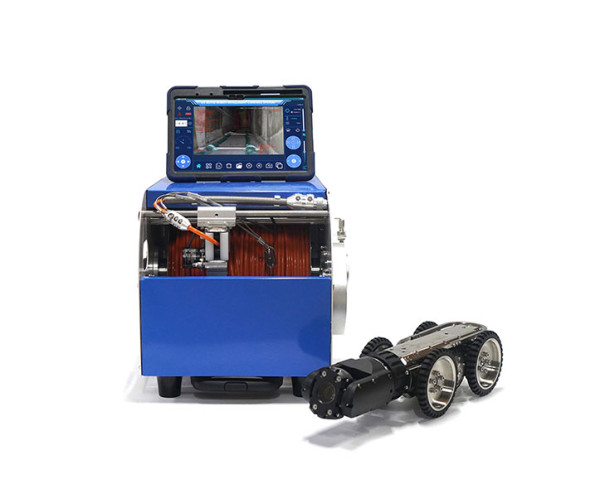

Crawler GT100 Robotic Inspection System is applicable in pipes from 5.5 inch/140 mm to 31.5 inch/800 mm. The video diagnostic trolley is equipped with 4 motors, which allows the tractor to move forward, backward, right and left. The video inspection system is equipped with a 360-degree pan and 220-degree tilt front camera with HD image quality. The pipe inspection system has an additional rear view camera, an inclinometer, a set of wheels of different diameters, a meter counter, superbright LEDs to illuminate the inspection area, a 10-inch monitor, and reporting software.
Specifications:
Camera Head:
Camera Resolution: 1920*1080
Light sensitivity: 16*10000 LUX
Zoom: 120 times (10X optical, 12X digital)
Light: 4 high brightness LEDs
Pan rotation: 360 degrees
Tilt rotation: 220 degrees
Auto focus: yes
Operating temperature: -10 +50 degrees Celsius
Camera Body Diameter: 4 inch/105 mm
Camera weight: 3.4 kg
Moisture protection class: IP68 (up to 33 feet/10 meters immersion in water)
Robot tractor:
For pipes from 5.5 inch/140 mm to 31.5 inch/800 mm
Camera lifting mechanism: yes
Speed 0-33 feet/10 meters per minute
4 wheel drive
Weight 15 kg
Two sets of wheels: 5 inch/130mm (4pcs), 8 inch/210mm (4pcs)
Second camera (rear view)
Waterproof: IP68
Power supply: 120-230V.
Monitor and control unit:
Screen diagonal: 10 inches
Resolution: 1920 x 1080
Photo Format: Jpeg
Video format: AVI
Keyboard
Interface: English
Moisture protection class: IP 54

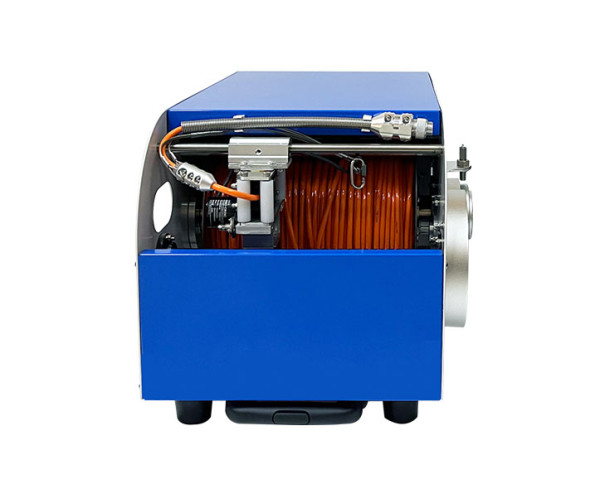

Coil and cable:
Cable length: 394 feet/120 meters, 656 feet/200 meters
Cable Diameter: 8.3mm
Automatic cable reel drive
Pump
Meter counter
Weight 60 kg
Moisture protection class: IP 53
Operating temperature: -20 + 55 °C
