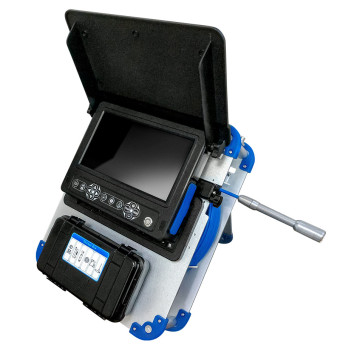

FlexiCam-Medium Plumbing Inspection Push Camera

FlexiCam-Medium Plumbing Inspection Push Camera brings out the best from this reliable and heavy duty tool. The control box comes with the 9" monitor diagonal size. The 0.27"/7 mm push cable diameter with length of 131'/40 m, 198'/60 m, 262'/80 m allows you to view pipes starting from 1"/25 mm up to 2'/600 mm. The cable is flexible yet rigid, easily passing 90° turns in 2"/50 mm pipes and up. The accurate meter counter has a switch allowing the choice of either the metric or imperial measurement system. A wide range of cameras options, with different diameter, self-levelling and transmitter possibilities, will help to complete your specific job effectively.

Camera & skids:

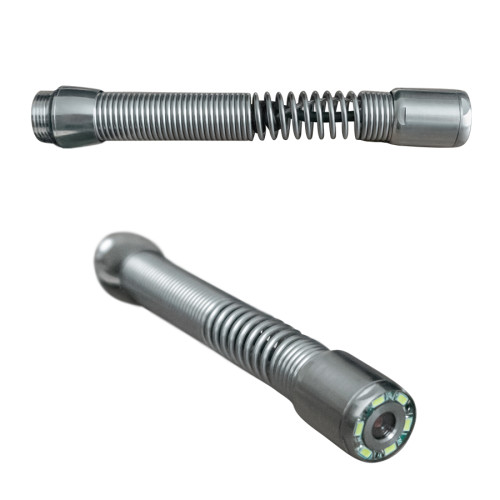

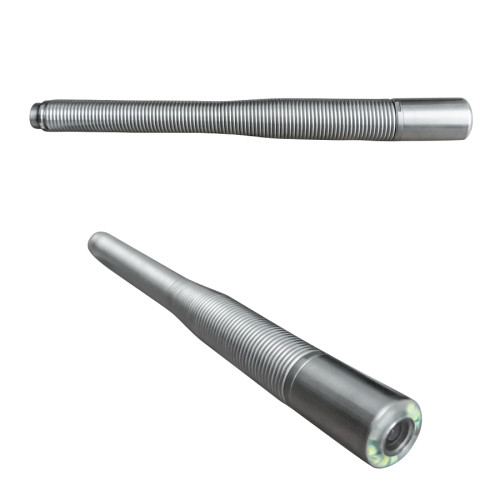

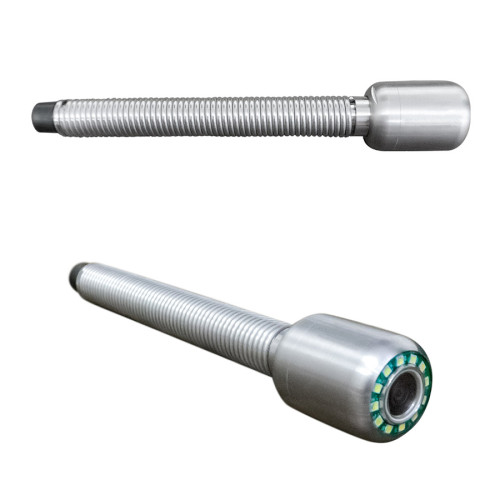

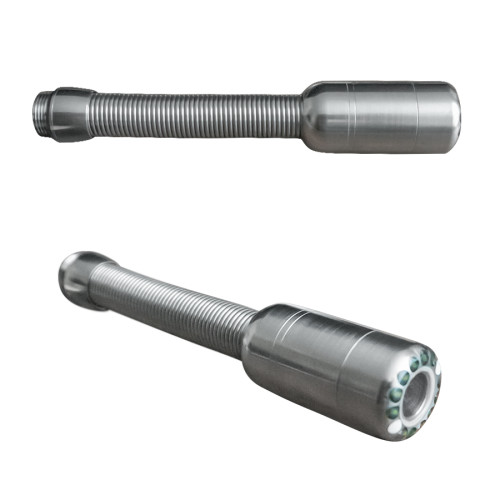

Camera size: ø 0.66”17 mm, 1”/23 mm, 1.1”/28 mm, 1.5”/38 mm

Video resolution: 720*576

Leds: 0.66"/17 mm camera –  6 pcs

               1”/23 mm camera – 12 pcs

            1.1"/28 mm camera – 12 pcs

            1.5”/38 mm camera – 18 pcs

View angle: 105°

Waterproof: IP68

Suitable pipe diameter: 25 mm-600 mm

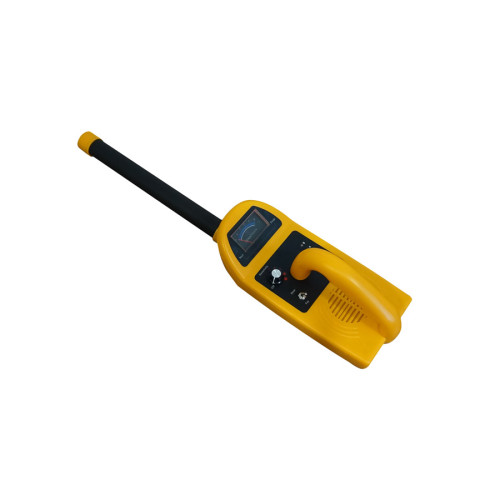

512Hz transmitter (optionally)

Skids: 0.66"/17 mm camera - 1”/23 mm

                1”/23 mm camera - 1.57"/40 mm, 3.14"/80mm

             1.1"/28 mm camera - 1.57"/40 mm, 3.14"/80mm

             1.5”/38 mm camera – 4.3”/110 mm, 6“/150 mm, 8,7“/220 mm

Cable reel:

Cable size: ø 18”/460L mm*11”/270W mm*22”/560H mm

Cable length: 131’/40 meter, 198’/60 m, 262’/80 m

Cable diameter: ø 0.27”/7mm

Meter counter

Cable material: polyurethane coated fiberglass

Control box:

Storage medium: 8G SD card (max 256G) or USB stick

DVR pixels: 720*576

Movie format: MP4

Digital zoom: 10 times

Charger time: 5 hours

Running time: ≥7 hours

Monitor:

Screen size: 9 inch TFT color

Screen pixels: 800*480

Case:

Size: L20”/520mm*W17”/435mm*H7.9”/200 mm

Case material: engineering plastic

What's in the box:

1.    Monitor

2.    Control box

3.    Camera

4.    Cable on the reel

5.    Meter counter

6.    Connecting cable

7.    Power adapter

8.    Skids

9.    Hex key

10. SD card (8 Gb)

11. USB adapter for SD card

12. Additional gaskets

13. Microphone

14. Keyboard

15. Integrated rechargeable battery

16. Case

17. Transmitter (optional)
