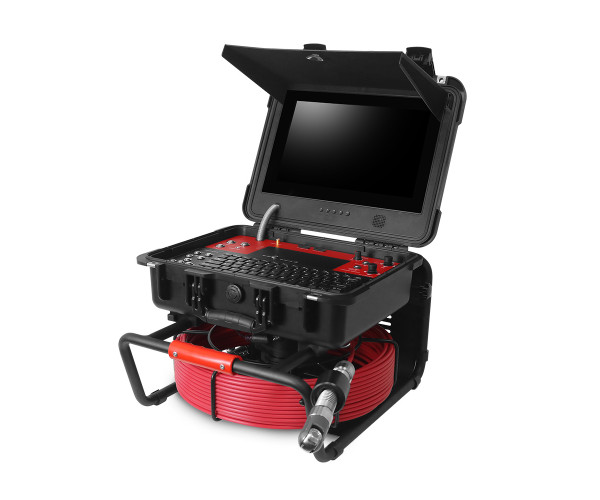

FlexiCam-VPT-mini portable pan-and-tilt drain push camera

The FlexiCam-VPT-mini is a professional-grade, compact pipeline inspection system specifically engineered for 3" to 8" diameter pipes. It combines high-definition AHD imaging with a fully maneuverable camera head and manual focus capabilities to provide precise diagnostics for sewers, drains, and underground infrastructure.

1. Advanced Imaging & Vision Control

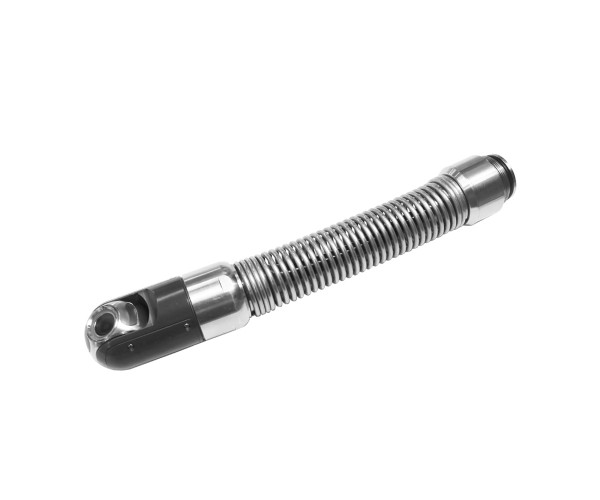

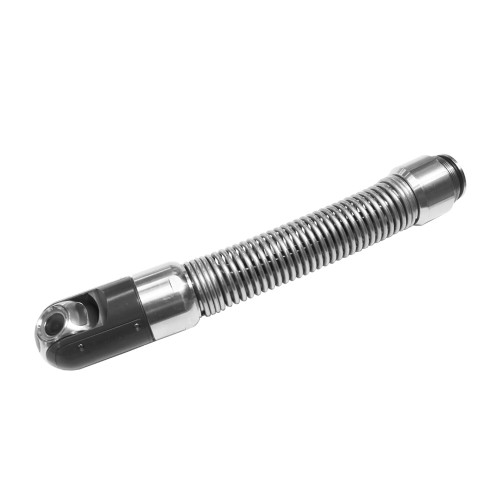

·         Precision 33mm PT Camera Head: The ultra-slim 1.3" (Ø33mm) camera head is built with durable stainless steel and a scratch-resistant sapphire glass lens.

·         Dual-Axis Maneuverability: Features a full 360° Pan and 180° Tilt rotation, allowing for exhaustive visual coverage of pipe walls and joints without repositioning.

·         Dynamic Manual Focus: Allows operators to manually adjust the focal point (minimum 30mm) to capture sharp, detailed images of both near-field blockages and distant      structural issues.

·         Full HD Clarity: Utilizes a 1/3" CMOS, 2.0MP sensor delivering 1080P resolution.

·         Optimized Illumination: Equipped with 4 high-intensity adjustable white LEDs for superior visibility in pitch-black environments.

2. High-Performance Control Unit

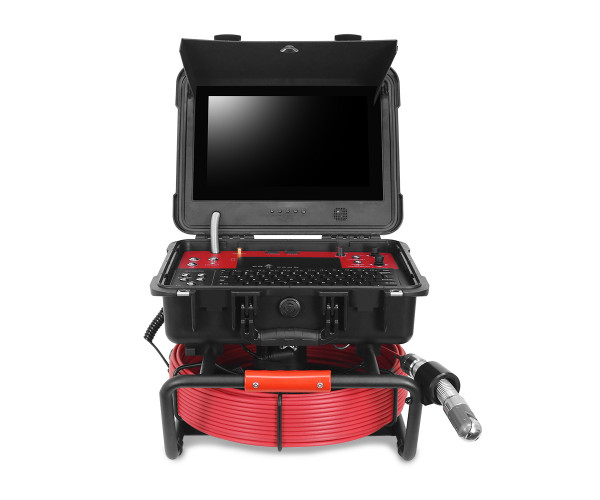

·         13-inch HD IPS Display: A large, 13-inch IPS LCD screen (1280 x 720 resolution) provides a vibrant, wide-angle view for real-time analysis.

·         Integrated DVR System: Supports one-touch recording for video (MP4), high-resolution photography, and audio commentary.

·         Intuitive Controls: Includes a dedicated joystick for pan/tilt movement and a wireless USB keyboard for real-time on-screen text overlays.

·         Digital Meter Counter: Features a built-in distance counter (error <1%) displayed on-screen to track the exact location of defects.

3. Rugged Deployment & Portability

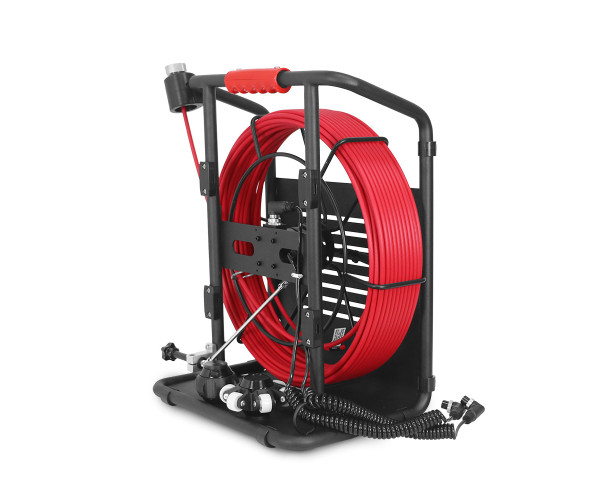

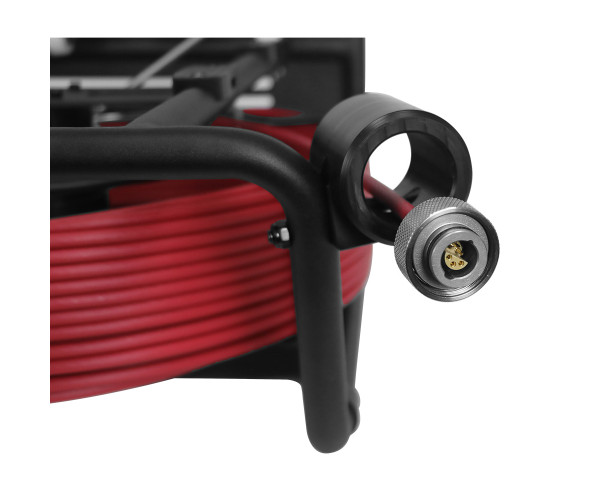

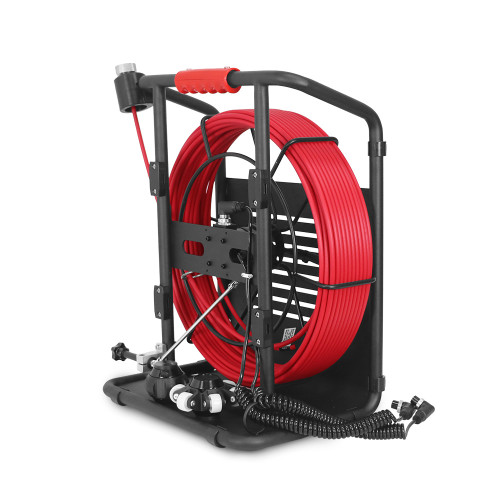

·         Heavy-Duty Cable Reel: Options for 66 ft-164 ft (20 to 50m) of stiff 0.3" (7mm) fiberglass push cable, designed to navigate bends while maintaining high structural integrity.

·         Extended Battery Life: Powered by an 8800mAh rechargeable Li-ion battery, supporting over 6 hours of continuous field operation.

·         Submersible Construction: The camera head is IP68 waterproof-rated and tested to withstand pressures up to 3 bars (approx. 99 ft / 30 m depth).

·         Locating Capabilities: Features a built-in 512Hz transmitter (sonde) to allow precise surface locating of the camera head using a standard receiver.

   Technical Specifications Summary
