Crawler ES5X: HD Robotic Pipe Inspection System with LiDAR

Crawler ES5X: HD Robotic Pipe Inspection System with LiDAR

USD $53,000

VAT: USD $53,000

Cable Length

Quantity:

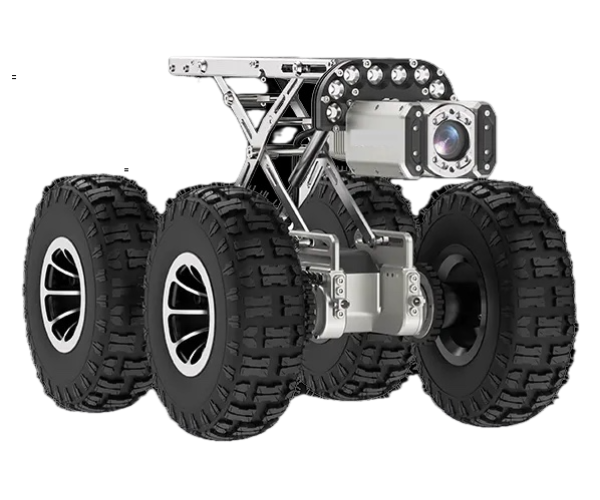

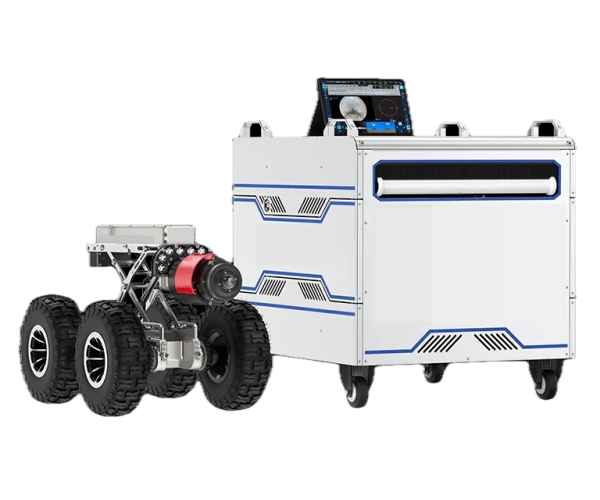

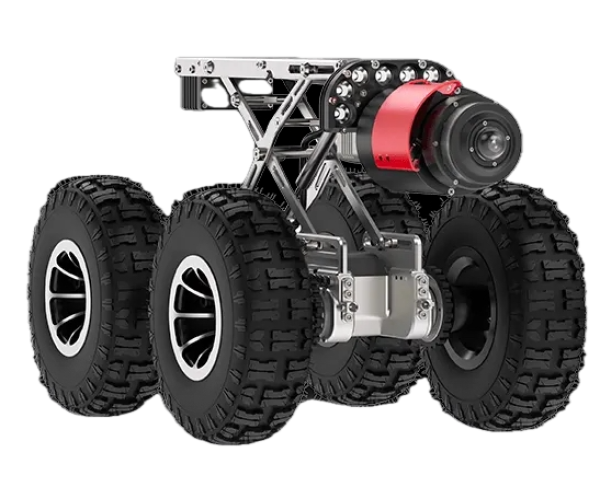

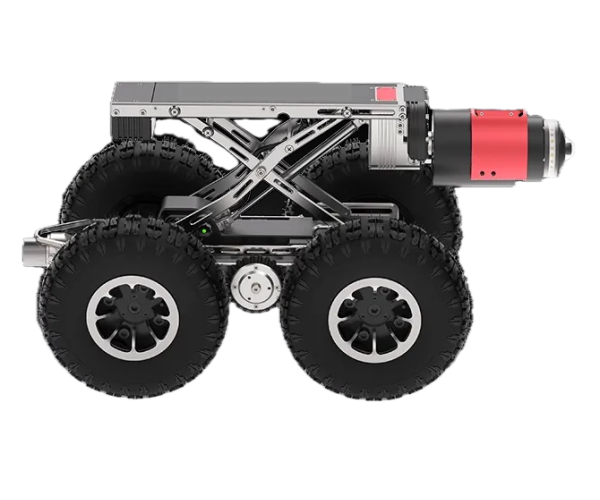

Optimize your pipeline diagnostics with the Crawler ES5X Robotic CCTV Inspection System. This high-tech pipe inspection robot delivers HD video resolution and unmatched mobility for drainage networks. Utilizing a wireless tablet interface, this advanced CCTV pipeline crawler allows operators to view live feeds, record diagnostic data, and log system parameters in real time. The modular system consists of a robust robotic crawler chassis, an HD pan-and-tilt video camera head, an automatic cable reel, and a centralized control console terminal.

Engineered for responsive maneuverability, the sewer camera crawler delivers instant execution of navigation commands, including forward/backward transit, steering, braking, and variable speed regulation. Operators maintain complete remote control over the inspection environment via a motorized camera lift, pan-and-tilt functionality, optical zoom, and instant dual-view switching between front and rear-view backup cameras. High-resolution defect images can be captured and saved mid-inspection.

For maximum accuracy, the Crawler ES5X can be configured with an integrated LiDAR laser scanner, a panoramic laser camera, and specialized software. This LiDAR pipeline scanning setup allows field crews to generate full unwrapped pipe views, deformation chromatograms, and cross-sectional profiles. By leveraging LiDAR point cloud data, the system provides millimeter-accurate measurements of deformations and sediment deposits, allowing operators to export a comprehensive 3D model of the surveyed underground network.

Specifications

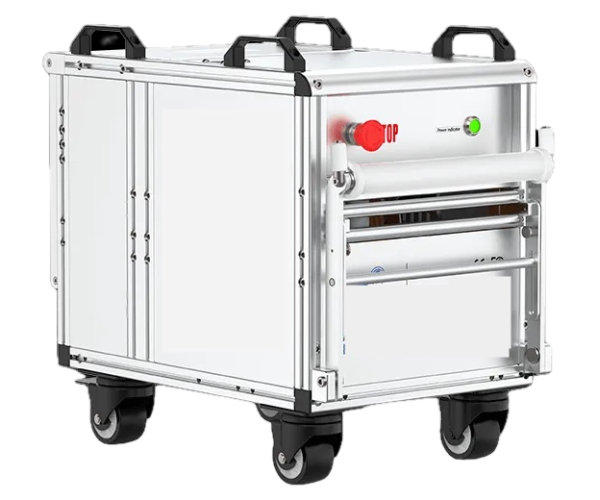

Control box

Monitor

tablet or laptop
File Manager

Android/Windows
Video Recording

yes
Image Capturing

yes
Remote Control Functions

crawler motion control (forward, backward, left, right), camera rotation control, camera lift mechanism control (up, down), movement speed control, light intensity control
Meter Counter

yes
Camera Rotation Control

joystick
Keyboard

yes
Power

110V/60Hz lithium battery power supply, dimensions 13.58 in * 6.77 in * 9.69 in (345 mm * 172 mm * 246 mm), weight 20.9 lbs (9.5 kg)
Battery

charging time 5-6 h, operating time ≈8 h, battery capacity 1,077 Wh, charging temperature 32 °F to 113 °F (0 ℃ to 45 ℃), operating temperature -4 °F to 140 °F (-20 ℃ to 60 ℃)
Working Temperature

14ºF 122ºF/-10ºC +50ºC
Srorage Temperature

14ºF 122ºF/-10ºC +50ºC
Humidity

95%
Zoom

optical x10, digitalx12
Inclinometer

yes

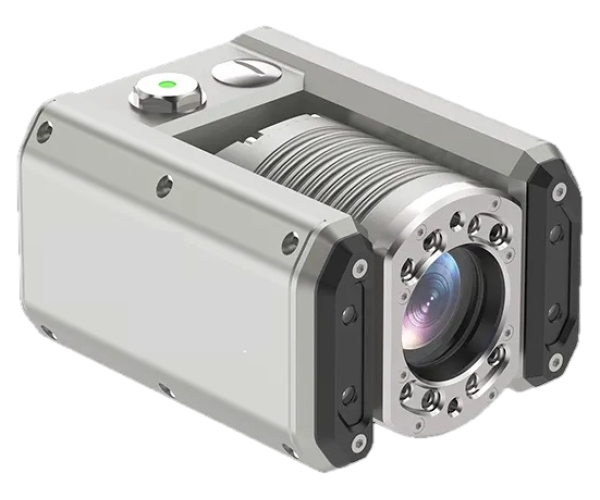

Camera

Camera Diameter

4.13 in * 2.91 in (105 mm * 74 mm
Camera Length

pan-and-tilt camera

6/7"/171 mm

rear view camera

n/a
Direction of View

pan-and-tilt camera

pan 360°, tilt 180°

rear view camera

0º
Resolution

pan-and-tilt camera

1/3" color CMOS, 2 MP (1920 * 1080), sensitivity 0.03 Lux

rear view camera

1/3" color CMOS, 2 MP (1920 * 1080), sensitivity 0.03 Lux
Field of View

pan-and-tilt camera

70º

rear view camera

70º
Focal Range

pan-and-tilt camera

from 2"/5 cm to 16/4ft/5 m, 10x optical zoom, 12x digital zoom

rear view camera

from 2"/5 cm to 16/4ft/5 m, 10x optical zoom, 12x digital zoom
Sonde

8 KHZ
Protective Lens

high-strength tempered glass
Lighting capabilities

pan-and-tilt camera

12 x 3W LED lights

rear view camera

2 x 3W LED lights
Waterproof

IP68, waterproof up to 10 meters, built-in pressure sensor with indicator
Camera Material

pan-and-tilt camera

composite metal housing

rear view camera

composite metal housing
Camera Weight

pan-and-tilt camera

4.1lb/1.8 kg

rear view camera

n/a

Cable Reel/Probe

Cable/Probe Length

from 393.7 ft (120 meters) to 984.2 ft (300 meters)
Cable/Probe Diameter

0.31 in (7.8 mm)
Cable Core material

flexible copper-core cable
Cable Cover/Braid Material

polyurethane
Reel Material

stainless steel
Meter Counter

yes
IP level

IP68 cable, IP65 reel
Winch

yes
Cable Auto Coiling

yes
Reel Wheels

4
Reel Stopper

yes
Reel Dimensions

22.44 in * 15.55 in * 18.70 in (570 mm * 395 mm * 475 mm)
Reel Weight

104.7 lbs (47.5 kg) with a 393.7 ft (120 meters) cable

Tractor

Tractor’s Speed

49.2 feet per minute (15 meters per minute)
Crawling Angle

45°
Engine Quantity

2
Engine’s Power

22 Watt
Fisheye Сamera

yes

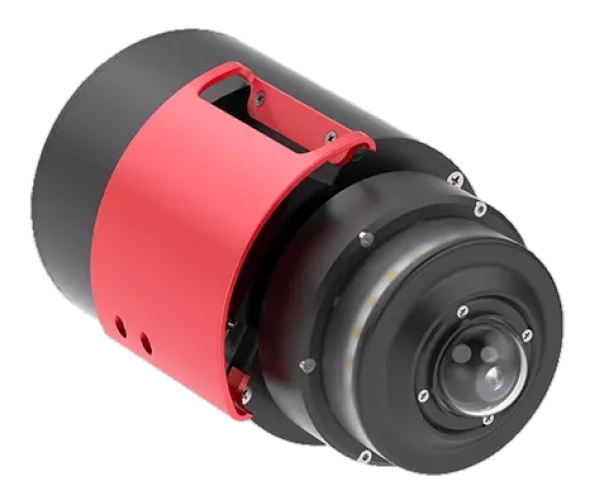

Lidar

Applicable pipe diameters: three laser models for diameters of 9.84–14.17 in (250–360 mm), 12.60–47.24 in (320–1,200 mm), and 14.17–59.06 in (360–1,500 mm); imaging system: 1/1.8" CMOS sensor, 2 MP, 180°×180° field of view; lighting: 8W power with smooth brightness adjustment; LiDAR laser accuracy: ±0.04 in (±1 mm); protection rating: IP67; operating temperature: 14 °F to 131 °F (-10 °C to 55 °C); weight: 4.41 lbs (2 kg)

What’s in the box

	Item	Avail/Qty
	Camera	pan-and-tilt
	Pan-and-Tilt/Articulation	pan 360°, tilt 180°.
	Sonde	yes
	Control box	tablet or laptop
	Video Recording	yes
	Photo Capturing	yes
	Cable Reel/Probe	yes
	Reel wheels	4
	Meter Counter	yes
	Keyboard	yes
	Connecting Cables	yes
	Storage Device	yes

	Item	Avail/Qty
	Remote control	yes
	Charger	yes
	Keys/Screwdrivers	set
	Gaskets	yes
	Battery	yes
	Lidar	yes
	Tool Bag	Quick-repair cable connectors – 2 pcs., camera fixing screw – 1 pc., hook, roller screw – 1 pc., borehole roller screw – 1 pc., tether ropes – 2 pcs., handle for manual cable reel winding – 1 pc., pump – 1 pc., screws M820 – 12 pcs., M535 – 20 pcs., M510 – 20 pcs., M540 – 20 pcs., 4 mm Allen key – 1 pc., 6 mm Allen key – 1 pc., dust boots – 4 pcs., power cable – 1 pc., internet cable – 1 pc
	Tractor	yes
	Set of wheels	4 sets. Rubber-coated wheels with diameters of 3 inches (6 pcs.), 6, 8, and 10 inches (4 pcs. per set)
	Winch	yes
	Wifi	built-in
