Crawler ES5: High-Definition Robotic Pipe Inspection System

Crawler ES5: High-Definition Robotic Pipe Inspection System

USD $39,000

VAT: USD $39,000

Cable Length

Quantity:

Streamline your pipeline assessments with the Crawler ES5 Robotic CCTV Inspection System. This advanced, high-definition pipe inspection robot delivers crystal-clear imaging and unmatched portability for municipal, industrial, and commercial drainage networks. Powered by a wireless tablet control unit, the Crawler ES5 eliminates bulky cables in the control hub, allowing operators to monitor equipment status, record high-definition video, and manage field data in real time.

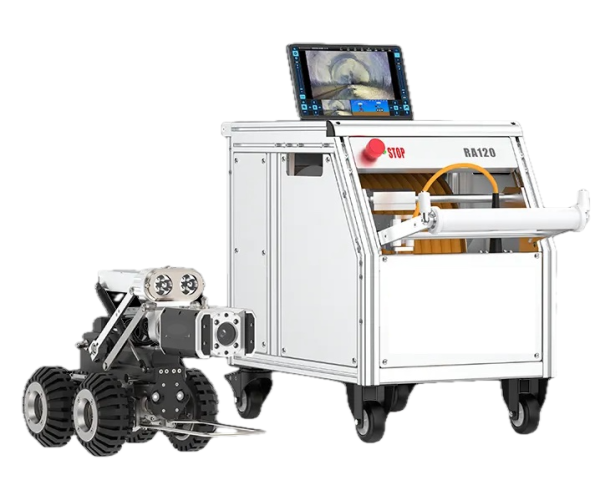

Key Features of the Crawler ES5 Inspection Camera: Wireless Control Hub: Uses a rugged tablet controller for seamless, cable-free synchronization with all hardware components. Instant Defect Capture: Snap images of cracks, blocks, and structural flaws instantly during live pipeline diagnostics. On-Site Report Generation: Automatically compile detailed inspection reports immediately after finishing the job. Modular 4-Part System: Built with four heavy-duty components: a robust robotic crawler, an HD camera head, an ergonomic cable reel, and an intuitive control system. Versatile Lens Compatibility: Supports pan-and-tilt, panoramic, or fixed lenses to match any pipe geometry and inspection requirement. Smart Touchscreen Annotation: Empower operators to overlay text notes and observations directly onto the live footage via the touchscreen interface

Maximize your field efficiency and accuracy. Upgrade to the Crawler ES5 robotic CCTV system and experience the future of smart, wireless mainline pipe inspection.

Specifications

Control box

Monitor

tablet or laptop
File Manager

Android/Windows
Video Recording

yes
Image Capturing

yes
Remote Control Functions

crawler motion control (forward, backward, left, right), camera rotation control, camera lift mechanism control (up, down), movement speed control, light intensity control
Meter Counter

yes
Camera Rotation Control

joystick
Keyboard

yes
Power

110V/60Hz lithium battery power supply, dimensions 352x187x260 mm, weight 10.2 kg.
Battery

Charging time 2-3 h, operating time ≈8 h, battery capacity 1,028 Wh, charging temperature 0℃~45℃, operating temperature -20℃~60℃.
Working Temperature

14ºF 122ºF/-10ºC +50ºC
Srorage Temperature

14ºF 122ºF/-10ºC +50ºC
Humidity

95%
Zoom

optical x10, digitalx12
Inclinometer

yes

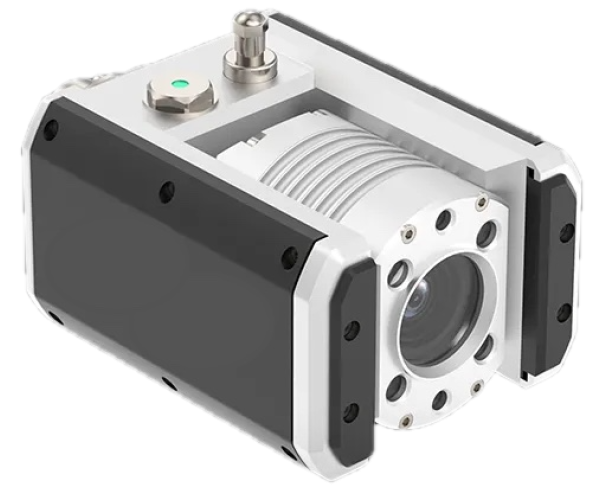

Camera

Camera Diameter

straight camera 75 mm, pan-and-tilt camera 105 mm * 88 mm
Camera Length

straight camera

3.9"/100 mm

pan-and-tilt camera

6/7"/171 mm

rear view camera

n/a
Direction of View

straight camera

0º

pan-and-tilt camera

pan 360°, tilt 180°

rear view camera

0º
Resolution

straight camera

1/3" color CMOS, 2 MP (1920 * 1080), sensitivity 0.03 Lux

pan-and-tilt camera

1/3" color CMOS, 2 MP (1920 * 1080), sensitivity 0.03 Lux

rear view camera

1/3" color CMOS, 2 MP (1920 * 1080), sensitivity 0.03 Lux
Field of View

straight camera

70º

pan-and-tilt camera

70º

rear view camera

70º
Focal Range

straight camera

from 2"/5 cm to 16/4ft/5 m, 10x optical zoom, 12x digital zoom

pan-and-tilt camera

from 2"/5 cm to 16/4ft/5 m, 10x optical zoom, 12x digital zoom

rear view camera

from 2"/5 cm to 16/4ft/5 m, 10x optical zoom, 12x digital zoom
Sonde

8 KHZ
Protective Lens

high-strength tempered glass
Lighting capabilities

straight camera

6 x 3W LED lights

pan-and-tilt camera

4 x 3W LED lights

rear view camera

2 x 3W LED lights
Waterproof

IP68, waterproof up to 10 meters, built-in pressure sensor with indicator
Camera Material

straight camera

composite metal housing

pan-and-tilt camera

composite metal housing

rear view camera

composite metal housing
Camera Weight

straight camera

1.3lb/0.6 kg

pan-and-tilt camera

4.2lb/1.9 kg

rear view camera

n/a

Cable Reel/Probe

Cable/Probe Length

from 393.7 ft (120 meters) to 984.2 ft (300 meters)
Cable/Probe Diameter

0.31 in (7.8 mm)
Cable Core material

flexible copper-core cable
Cable Cover/Braid Material

polyurethane
Reel Material

stainless steel
Meter Counter

yes
IP level

IP68 cable, IP65 reel
Winch

yes
Cable Auto Coiling

yes
Reel Wheels

4
Reel Stopper

yes
Reel Dimensions

2.76 in * 15.55 in * 18.70 in (70 mm * 395 mm * 475 mm)
Reel Weight

104.7 lbs (47.5 kg) with a 393.7 ft (120 meters) cable

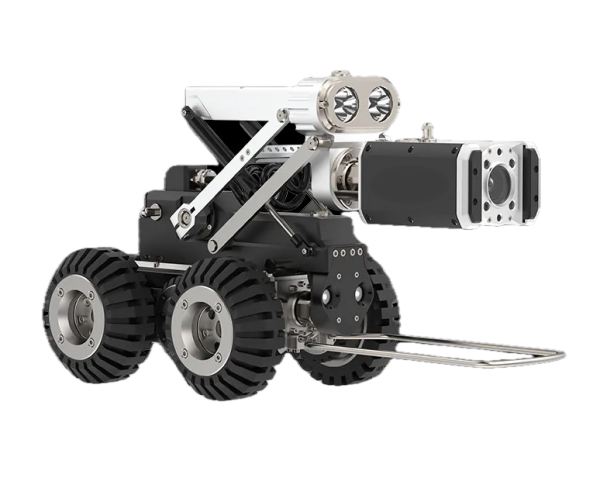

Tractor

Tractor’s Speed

49.2 feet per minute (15 meters per minute)
Crawling Angle

45°
Engine Quantity

2
Engine’s Power

22 Watt
Fisheye Сamera

no
Lidar

no

What’s in the box

	Item	Avail/Qty
	Camera	straight / pan-and-tilt
	Pan-and-Tilt/Articulation	pan 360°, tilt 180°.
	Sonde	yes
	Control box	tablet or laptop
	Video Recording	yes
	Photo Capturing	yes
	Cable Reel/Probe	yes
	Reel wheels	4
	Meter Counter	yes
	Keyboard	yes
	Connecting Cables	yes
	Storage Device	yes

	Item	Avail/Qty
	Remote control	yes
	Charger	yes
	Keys/Screwdrivers	set
	Gaskets	yes
	Battery	yes
	Lidar	no
	Tool Bag	quick-repair cable connectors – 2 pcs., protective bumper, hook – 1 pc., roller screw – 1 pc., borehole roller screw – 1 pc., tether ropes – 2 pcs., handle for manual cable reel winding – 1 pc., pump – 1 pc., screws M535 – 12 pcs., M520 – 12 pcs., M36 – 4 pcs., M630 – 6 pcs., 3 mm Allen key – 1 pc., 4 mm Allen key – 1 pc., 5 mm Allen key – 1 pc., wrench – 1 pc., dust boot – 4 pcs., fuse – 5 pcs., large lock washer – 2 pcs., small lock washer – 24 pcs., handle – 1 pc., power cable – 1 pc., internet cable – 1 pc.
	Tractor	yes
	Set of wheels	3 sets rubber-coated wheels with diameters of 3, 4, and 6 inches (4 pcs. per set).
	Winch	yes
	Wifi	built-in
